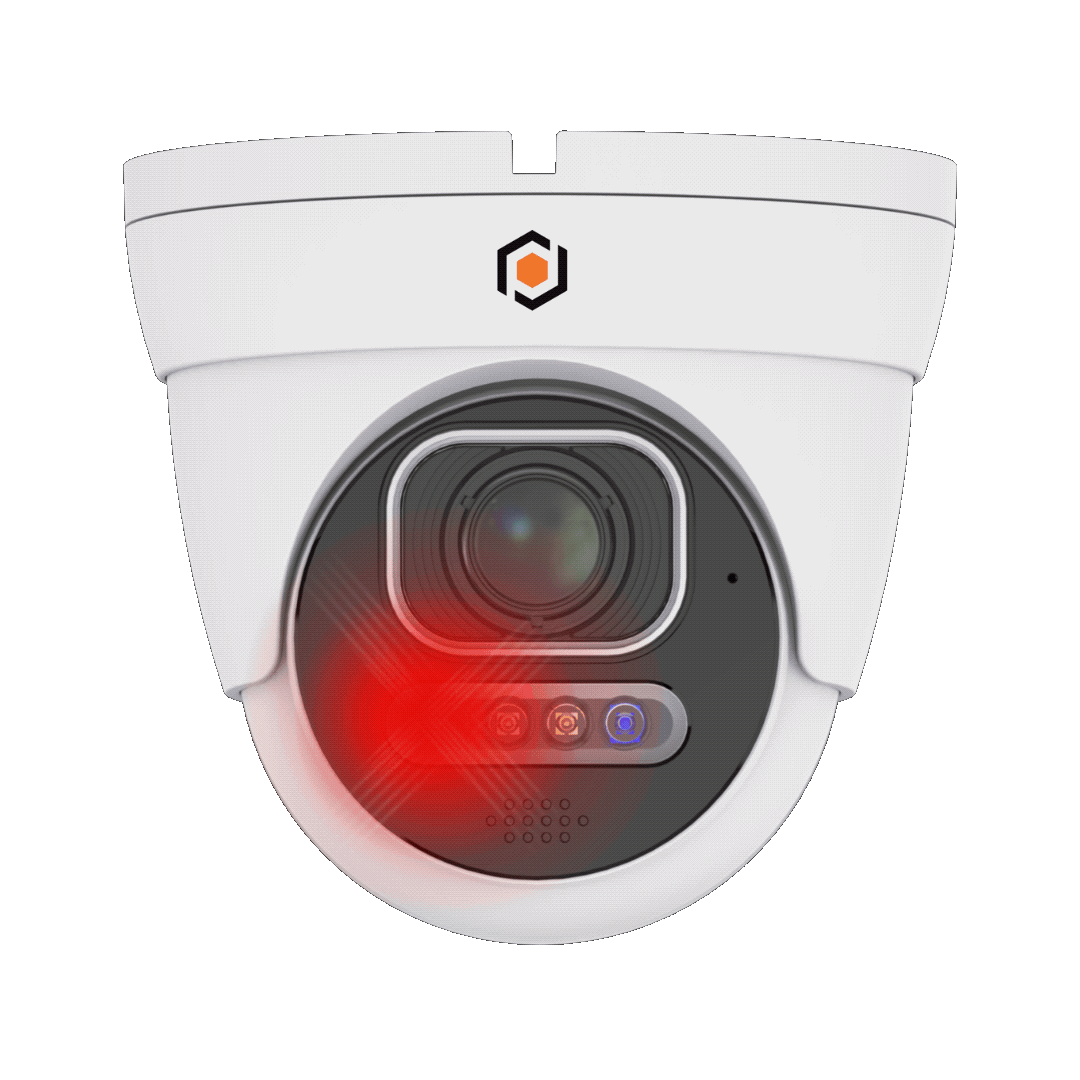

  2. XST3ZATV2812IP4MP-AI+

XST3ZATV2812IP4MP-AI+

https://www.gsdgroupinc.com/web/image/product.template/1112/image_1920?unique=67d9a67
  • Icon Deterrence Lights and Siren
  • Icon Alarm/Audio In/Out
  • Icon IR up to 30M
  • Icon See in Color at Night
  • Icon 2.8-12mm Motorized Lens
  • Icon Two-Way Communication
  • Icon 4MP Resolution
  • Icon Micro SD Card Slot up to 1TB
  • Icon IP67 Waterproof & Dustproof
FIND A DISTRIBUTOR FIND AN INSTALLER

NDAA Onvif GST CE FCC
Download the OV CONNECT APP
APP STORE GOOGLE PLAY
(0 review )

X TURRET | 4MP | LENS 2.8-12MM MOTO | TOTAL VIEW | ALARM AUDIO IN/OUT | SPK/MIC/DET | A.I | IP67 | NDAA

PRODUCT SPECIFICATIONS

Imaging Device 1/1.8''
Effective Pixels 4MP 2688(H)×1520(V)@30fps
Min. Illumination Color 0.0007lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Scanning System Progressive CMOS
Focal Length (Zoom Ratio) 2.8-12mm
Max. Aperture Ratio F No. 1.2
Angular Field Of View 113(W)-48(T)° Vertical
Min. Object Distance 1.75m, T
IR LED 2
Warmlight 2
Red & Blue Light 2 (1 Red & 1 Blue)
IR Viewable Length Up to 30m
Warmlight Viewable Length Up to 25m
Type Of Complementary Light Default warm light, switchable infrared light
Motion Detection Off/On (8 Levels)
Wide Dynamic Range WDR
Digital Noise Reduction 3D DNR
Image Setting Full Color Mode/Day&Night Mode/Smart IIIumination
White Balance Auto/Manual
Electronic Shutter Speed 1/5 ~ 1/20000s
On-Board Storage Micro SD slot, up to 1TB
Alarm 1 input, 1 output
Audio Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
Custom Voice Yes
Hardware Reset Yes
Smart Features Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Multi-Target-Type Recognition, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting, Fall Detection, Fire&Smoke Detection
Ethernet RJ45(10/100BASE-T)
Video Compression Format H.265/H.264/H.265+/H.264+/MJPEG
Resolution Mainstream@30fps 4MP(2688x1520),3MP(2304x1296), 1080P(1920x1080) Substeam@30fps 1080P(1920x1080),720P(1280x720),VGA (640x480) Mobilestream@30fps VGA(640x480), QVGA(320x240)
Video Quality Adjustment 256Kbps ~ 8Mbps
Bitrate Control Method CBR/VBR
IP IPv6
Protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security IP address filter;complicated password; Authenticated username and password
Application Programming Interface ONVIF( Profile S/G/T)
Web Viewer IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
Operating Conditions -35~+60°C/less than ≤ 90% RH
Ingress Protection IP67
Input Voltage / Current DC 12V/POE
AI Features AI+
Power Consumption max 6.96W; PoE(48V)
Color/material metal
