- Imaging Device
- 1/1.8''
- Effective Pixels
- 4MP 2688(H)×1520(V)@30fps
- Min. Illumination
- Color 0.0007lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Scanning System
- Progressive CMOS
- Focal Length (Zoom Ratio)
- 2.8-12mm
- Max. Aperture Ratio
- F No. 1.2
- Angular Field Of View
- 113(W)-48(T)° Vertical
- Min. Object Distance
- 1.75m, T
- IR LED
- 2
- Warmlight
- 2
- Red & Blue Light
- 2 (1 Red & 1 Blue)
- IR Viewable Length
- Up to 30m
- Warmlight Viewable Length
- Up to 25m
- Type Of Complementary Light
- Default warm light, switchable infrared light
- Motion Detection
- Off/On (8 Levels)
- Wide Dynamic Range
- WDR
- Digital Noise Reduction
- 3D DNR
- Image Setting
- Full Color Mode/Day&Night Mode/Smart IIIumination
- White Balance
- Auto/Manual
- Electronic Shutter Speed
- 1/5 ~ 1/20000s
- On-Board Storage
- Micro SD slot, up to 1TB
- Alarm
- 1 input, 1 output
- Audio
- Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
- Custom Voice
- Yes
- Hardware Reset
- Yes
- Smart Features
- Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Multi-Target-Type Recognition, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting, Fall Detection, Fire&Smoke Detection
- Ethernet
- RJ45(10/100BASE-T)
- Video Compression Format
- H.265/H.264/H.265+/H.264+/MJPEG
- Resolution
- Mainstream@30fps 4MP(2688x1520),3MP(2304x1296), 1080P(1920x1080) Substeam@30fps 1080P(1920x1080),720P(1280x720),VGA (640x480) Mobilestream@30fps VGA(640x480), QVGA(320x240)
- Video Quality Adjustment
- 256Kbps ~ 8Mbps
- Bitrate Control Method
- CBR/VBR
- IP
- IPv6
- Protocol
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
- Security
- IP address filter;complicated password; Authenticated username and password
- Application Programming Interface
- ONVIF( Profile S/G/T)
- Web Viewer
- IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
- Operating Conditions
- -35~+60°C/less than ≤ 90% RH
- Ingress Protection
- IP67
- Input Voltage / Current
- DC 12V/POE
- AI Features
- AI+
- Power Consumption
- max 6.96W; PoE(48V)
- Color/material
- metal

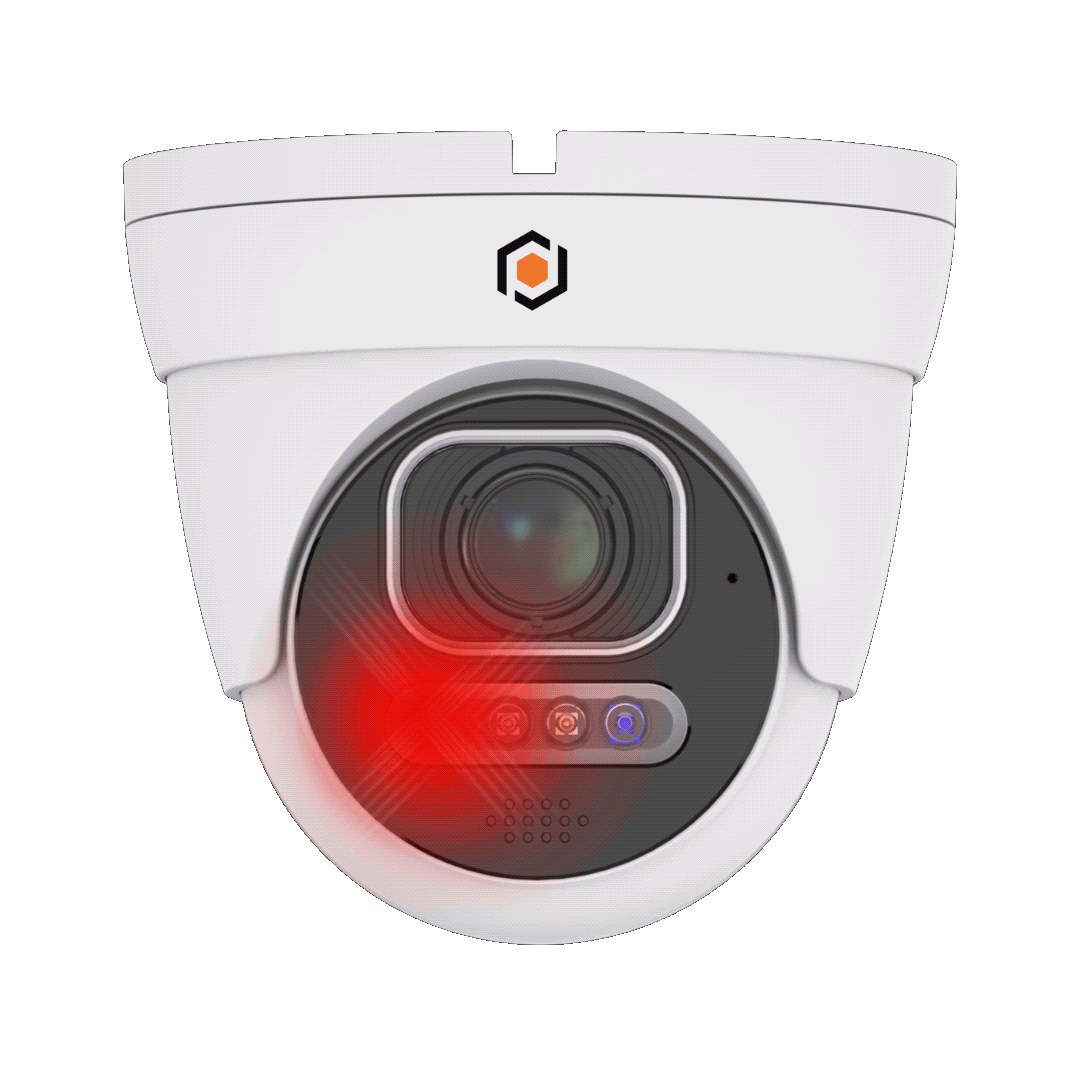

X TURRET | 4MP | LENS 2.8-12MM MOTO | TOTAL VIEW | ALARM AUDIO IN/OUT | SPK/MIC/DET | A.I | IP67 | NDAA
