  2. XSLPRB9Z832IP8MP-AI+

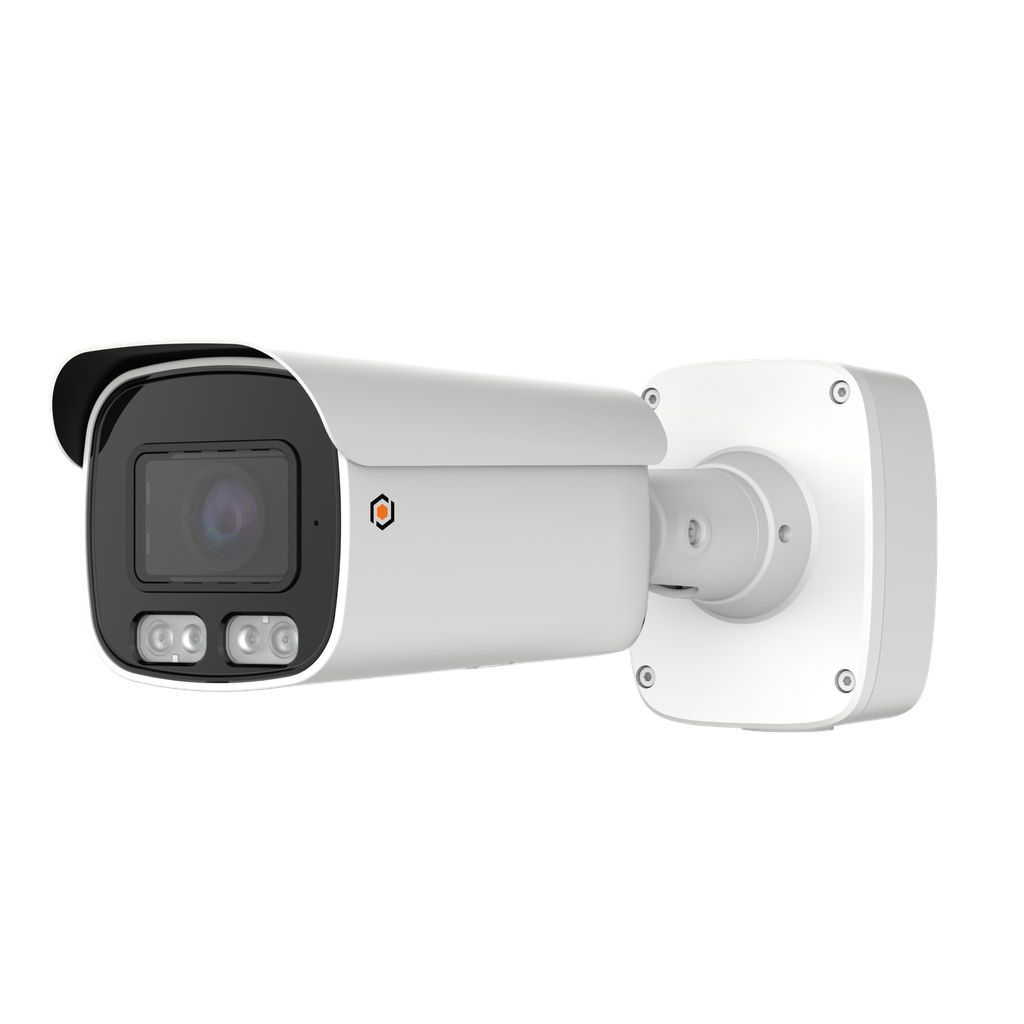

XSLPRB9Z832IP8MP-AI+

https://www.gsdgroupinc.com/web/image/product.template/1117/image_1920?unique=923ba1d
BULLET
  • Deterrence Lights
  • 8MP Resolution
  • Dustproof & Water-Resistant
  • IR up to 100M
  • See Color at Night
  • Microphone & Speaker
  • 8-32mm Motorized Lens
  • AI+
  • Micro SD Card Slot up to 1TB
  • IK10 Dust, Water & Impact Resistant
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Imaging Device
1/1.8''
Effective Pixels
8MP 3840(H)×2160(V)
Scanning System
Progressive CMOS
Min. Illumination
0.0008 Lux @ (F1.7, AGC ON);0 Lux with IR
IR LED
8
Warmlight
4
IR Viewable Length
Up to 100m
Warmlight Viewable Length
Up to 30m
Type Of Complementary Light
Default warm light, switchable infrared light
Motion Detection
Off/On (8 Levels)
Wide Dynamic Range
120dB
Digital Noise Reduction
3D DNR
Image Setting
Full Color Mode/Day&Night Mode/Smart IIIumination
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
2 inputs, 2 outputs
Audio
Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
DUAL MODES
Customizable Voice
DUAL Light Sources
24/7 All-weather Color Images
Hardware Reset
Yes
Focal Length (Zoom Ratio)
8-32mm (fast zoom)
Max. Aperture Ratio
F1.7 to F 1.76
Min. Object Distance
1.5 m ~ INF, T
IRIS Type
Precise iris
Custom Voice
Yes
Smart Features
Rare Sound Detection (SD) , Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD), Region Entrance and Exiting (RE), Intrusion
LPR Vehicle Speed
Up to 120km/h
Focal Length (Zoom Ratio)
8-32mm (fast zoom)
Max. Aperture Ratio
F1.7 to F 1.76
Angular Field Of View
40(W)-14(T)° V
Min. Object Distance
1.5 m ~ INF, T
IRIS Type
Precise iris
Ethernet
RJ45(10/100BASE-T)
Video Compression
H.265/H.264/H.265+/H.264+/MJPEG
Resolution
8MP(3840x2160), 5MP(3072x1728,2592x1944), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Sub Stream @30fps
Video Quality Adjustment
256Kbps ~ 16Mbps
Bitrate Control Method
CBR/VBR
IP
IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Application Programming Interface
ONVIF( Profil S/G/T)
Compatible Web Browsers
IE10/11, Safari V12.1/above, Firefox V.52/above, Google chrome V.57/above, Edge V.79/above
Ingress Protection
IP67, IK10, NEMA 4X
Operating Conditions
-35°~+60°C/less than ≤ 90% RH
Input Voltage / Current
D12V/POE
Power Consumption
max 10.24W; POE (48V)
Material
Metal
Dimensions (LXHXP)
353.8mm×135.2mm
