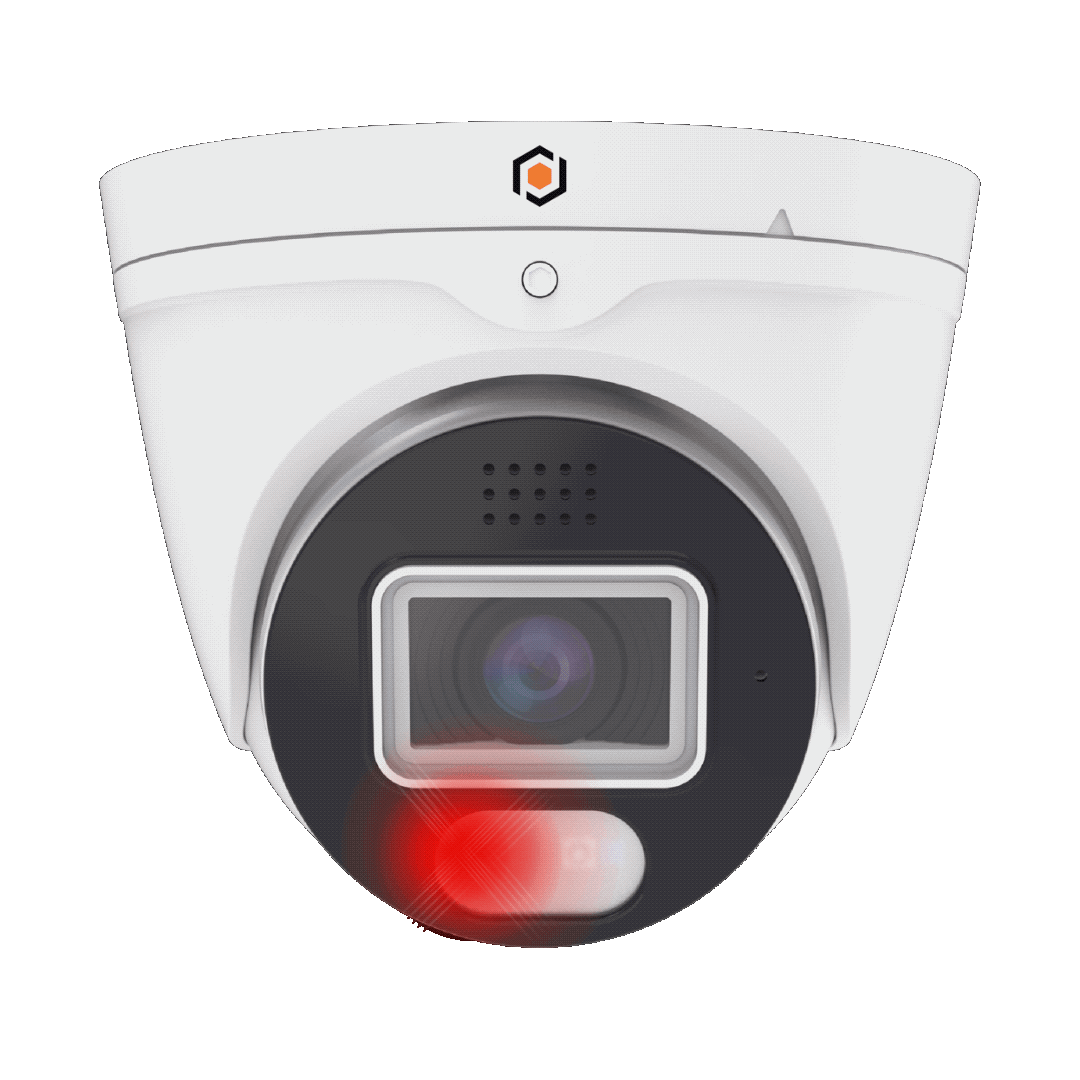

XSEBIP8MP36-AI+

XSEBIP8MP36-AI+

https://www.gsdgroupinc.com/web/image/product.template/1111/image_1920?unique=923ba1d
EYEBALL
  • Deterrence Lights and Siren
  • 3.6mm Lens
  • 8MP Resolution
  • Dustproof & Water-Resistant
  • Micro SD Card Slot up to 256GB
  • Two-Way Communication
  • See Color at Night
  • Warmlight up to 20M
  • Spectral Light
  • AI+
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Color
WHITE
Imaging Device
1/1.8''
Effective Pixels
8MP 3840(H)×2160(V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.0007 Lux @(F1.0, AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
3.6 mm
Max. Aperture Ratio
F No. 1.0
Angular Field Of View
110°, Vertical
Min. Object Distance
0.2m
Lens Type
FIXED M16
IR LED
N/A
Warmlight
2
Red & Blue Light
2 (1 Red & 1 Blue)
IR Viewable Length
NA
Warmlight Viewable Length
Up to 20m
Type Of Complementary Light
Default warm light
Backlight Compensation
Off/On (5 Zones)
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Motion Detection
Off/On (8 Levels)
Image Setting
Day&Night Mode/Full Color Mode/Schedule
Privacy Masking
Off/On (4 Zones, Rectangle)
Gain Control
Auto
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
N/A
Audio
Built-in microphone & speaker
Hardware Reset
Yes
Smart Features
Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD), Region Entrance and Exiting (RE), Intrusion, Noise Detection
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264/ H.265+/H.264+
Resolution
Mainstream 8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520),3MP(2304x1296),1080P(1920x1080) Substream 1080P(1920x1080),720P(1280x720),VGA(640x480) Mobile Stream VGA(640x480), QVGA(320x240)
Video Quality Adjustment
256Kbps ~ 16Mbps
Bitrate Control Method
CBR/VBR
IP
IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Application Programming Interface
ONVIF( Profile S/G/T/M)
Streaming Method
Unicast/Multicast
Compatible Web Browsers
IE10/11, Safari V12.1/above, Firefox V.52/above, Google chrome V.57/above, Edge V.79/above
Operating Conditions
-35°+60°C/ Less than ≤ 95% RH
Ingress Protection
IP67
Input Voltage / Current
D12V/POE (IEEE802.3af)
Power Consumption
max 6.96W
Color/material
White/Metal
Dimensions (LXHXP)
115.5mm×97.9mm
