Imaging Device
|
1/1.8''
|
|
Effective Pixels
|
8MP 3840(H)×2160(V)
|
|
Min. Illumination
|
Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
|
|
Scanning System
|
Progressive CMOS
|
|
Focal Length (Zoom Ratio)
|
2.8-12mm
|
|
Max. Aperture Ratio
|
F 1.2
|
|
Angular Field Of View
|
113(W)-48(T)° Vertical
|
|
Min. Object Distance
|
1.75m, T
|
|
Lens Type
|
Motorized Ø16.7
|
|
IR LED
|
4
|
|
Warmlight
|
4
|
|

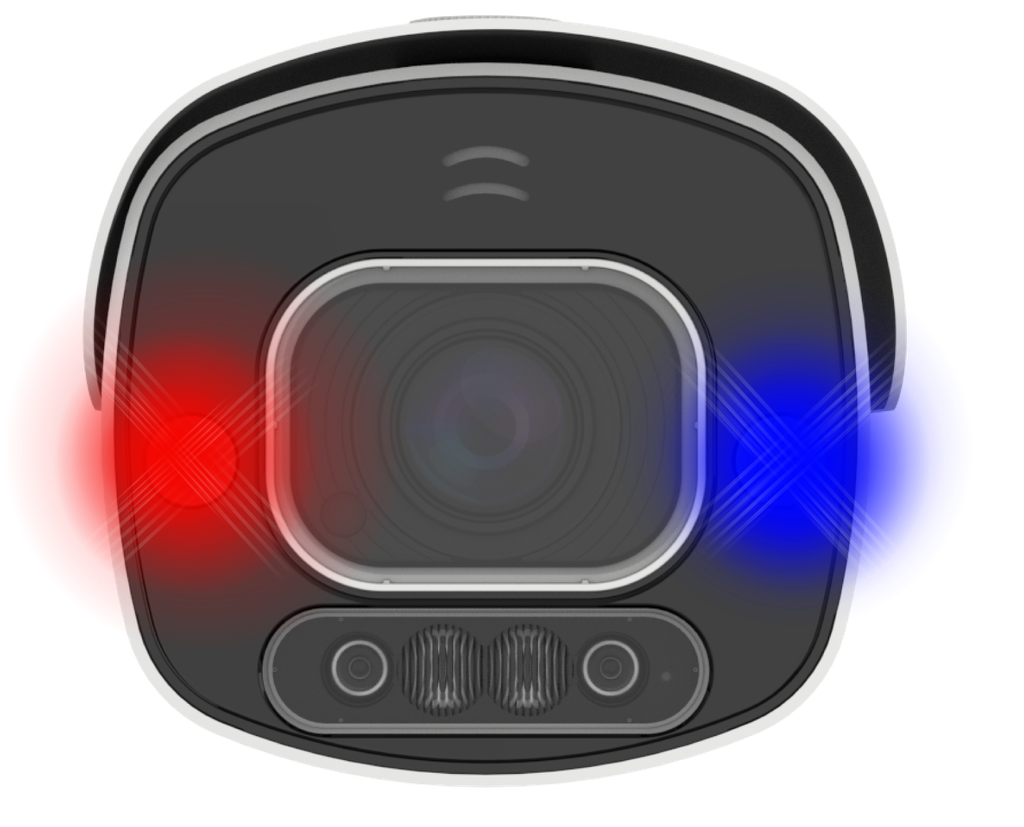

Red & Blue Light
|
2 (1 Red & 1 Blue)
|
|
IR Viewable Length
|
Up to 45m
|
|
Warmlight Viewable Length
|
Up to 30m
|
|
Type Of Complementary Light
|
Default warm light, switchable infrared light
|
|
Motion Detection
|
Off/On (8 Levels)
|
|
Wide Dynamic Range
|
WDR
|
|
Digital Noise Reduction
|
3D DNR
|
|
Image Setting
|
Full Color Mode/Day&Night Mode/Smart IIIumination
|
|
White Balance
|
Auto/Manual
|
|
Electronic Shutter Speed
|
1/5 ~ 1/20000s
|
|
On-Board Storage
|
Micro SD slot, up to 1TB
|
|
Alarm
|
1 input, 1 output
|
|
Audio
|
Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
|
|
Custom Voice
|
Yes
|
|
Hardware Reset
|
Yes
|
|
Smart Features
|
Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Multi-Target-Type Recognition, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting, Fall Detection, Fire&Smoke Detection
|
|
Ethernet
|
RJ45(10/100BASE-T)
|
|
Video Compression Format
|
H.265/H.264
|
|
Resolution
|
Mainstream @30fps 8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720), Substream @30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream @30fps VGA(640x480), QVGA(320x240)
|
|
Video Quality Adjustment
|
256Kbps ~ 16Mbps
|
|
Bitrate Control Method
|
CBR/VBR
|
|
IP
|
IPv6
|
|
Protocol
|
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
|
|
Security
|
IP address filter;complicated password; Authenticated username and password
|
|
Application Programming Interface
|
ONVIF( Profile S/G/T)
|
|
Compatible Web Browsers
|
IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
|
|
Operating Conditions
|
-35 ~ +60°C/less than ≤ 95% RH
|
|
Ingress Protection
|
IP67
|
|
Input Voltage / Current
|
DC 12V/POE
|
|
Color/material
|
White/Metal
|
|
AI Features
|
AI+
|
Deterrence Lights and Siren
