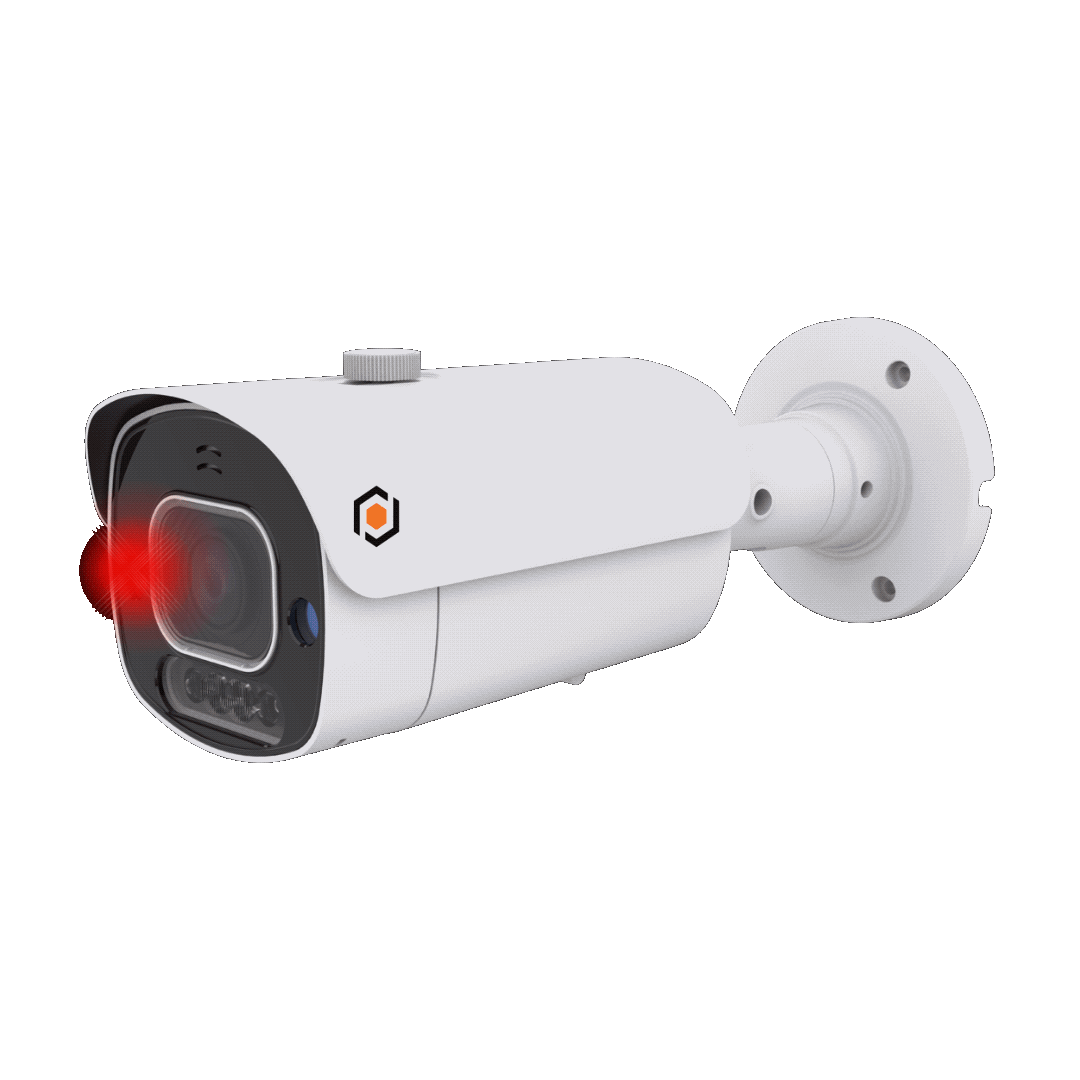

XSB8ZA2812IP4MP-AI+

https://www.gsdgroupinc.com/web/image/product.template/1120/image_1920?unique=923ba1d
BULLET
  • Deterrence Lights and Siren
  • Alarm/Audio In/Out
  • Dustproof & Water-Resistant
  • IR up to 45M
  • 2.8-12mm Motorized Lens
  • Two-Way Communication
  • 4MP Resolution
  • See Color at Night
  • AI+
  • Micro SD Card Slot up to 1TB
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Imaging Device
1/1.8''
Effective Pixels
4MP 2688(H) x1520 (V)
Min. Illumination
Color 0.0007 Lux @(F1.0, AGC ON) ; B/W 0 lux @ IR ON
Scanning System
Progressive CMOS
Focal Length (Zoom Ratio)
2.8-12mm
Max. Aperture Ratio
F 1.2
Angular Field Of View
113(W)-48(T)° Vertical
IR LED
4
Warmlight
4
Red & Blue Light
2 (1 Red & 1 Blue)
Min. Object Distance
1.5m
IR Viewable Length
Up to 45m
Warmlight Viewable Length
Up to 30m
Type Of Complementary Light
Default warm light, switchable infrared light
Motion Detection
Off/On (8 Levels)
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Image Setting
Day&Night Mode/Full Color Mode/Schedule
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
1 input, 1 output
Audio
Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
Custom Voice
Yes
Hardware Reset
Yes
Smart Features
Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Multi-Target-Type Recognition, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting, Fall Detection, Fire&Smoke Detection
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264/H.265+/H.264+/MJPEG
Resolution
Mainstream @30fps 8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720), Substream @30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream @30fps VGA(640x480), QVGA(320x240)
Video Quality Adjustment
256Kbps ~ 16Mbps
Bitrate Control Method
CBR/VBR
IP
IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Application Programming Interface
ONVIF( Profile S/G/T)
Compatible Web Browsers
IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
Operating Conditions
-35 ~ +60°C/less than ≤ 95% RH
Ingress Protection
IP67
Input Voltage / Current
DC 12V/POE
Color/material
White/Metal
AI Features
AI+
