Image Sensor
|
1/1.8” progressive scan CMOS
|
|
Max. Resolution
|
3840 × 2160
|
|
Min. Illumination
|
0.0005Lux @ (F1.6, AGC ON), B/W
|
|
Shutter Speed
|
1/5 s to 1/20000 s
|
|
Slow Shutter
|
Yes
|
|
Day & Night
|
IR cut filter
|
|
Zoom
|
37 × optical, 16 × digital
|
|
Focal Length
|
5.5 mm to 202 mm
|
|
FOV
|
60° to 2.31° (wide-tele) Vertical field of view
|
|
Aperture
|
Max. F1.6
|
|
Focus
|
Auto, semi-auto, manual
|
|
Supplement Light Range
|
up to 25 m, IR
|
|
Supplement Light Type
|
Hybrid (IR and White Light)
|
|
Movement Range(PAN)
|
360°
|
|
Movement Range(TILT)
|
-20° to 90° (auto flip)
|
|
Pan Speed
|
200°/s
|
|
Tilt Speed
|
Configurable from 0.6° to 90°/s, preset speed 100°/s
|
|
Proportional Pan
|
Yes
|
|
Presets
|
255
|
|
Patrol Scan
|
4 patrols, up to 32 presets for each patrol
|
|
Pattern Scan
|
4 pattern scans
|
|
Power-Off Memory
|
Yes
|
|
Park Action
|
Preset, pattern scan, auto scan, patrol scan
|
|
3D Positioning
|
Yes
|
|
PTZ Status Display
|
Yes
|
|
Scheduled Task
|
Preset, pattern scan, patrol scan, auto scan
|
|
Main Stream
|
25 fps (3840 × 2160, 3072 x 1728, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 × 960, 1280 × 720); 60 Hz
|
|
Sub-Stream
|
25 fps (1920 x 1080, 1280 × 720, 640 × 480, 320 × 240); 60 Hz
|
|
Third Stream
|
25 fps ( 640 × 480, 320 × 240); 60 Hz
|
|
Video Compression
|
H.265+/H.265/H.264+/H.264 Sub-stream
|
|
Video Bit Rate
|
16 kbps to 16384 kbps
|
|
H.264 TYPE
|
Baseline Profile/Main Profile/High Profile
|
|
H.265 TYPE
|
Main Profile
|
|
Region Of Interest (ROI)
|
8 fixed regions for each stream
|
|
Audio Compression
|
G.711alaw, G.711ulaw
|
|
Audio Bit Rate
|
64 Kbps (G.711)
|
|
Audio Sampling Rate
|
8 kHz
|
|
Environment Noise Filtering
|
Yes
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
|
|
Protocols
|
IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP
|
|
API
|
Onvif ( Profile S, Profile G, Profile T),Http API
|
|
Simultaneous Live View
|
Up to 20 channels
|
|
User/Host
|
administrator, operator, and user
|
|
Security
|
Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings
|
|
Client
|
VMS
|
|
Web
|
IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
Wide Dynamic Range (WDR)
|
120 dB
|
|
DEFOG
|
Digital defog
|
|
Image Stabilization
|
DIS
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
|
|
Privacy Mask
|
8 privacy masks
|
|
SNR
|
> 52 dB
|
|
Ethernet Interface
|
1 RJ45 10M/100M self-adaptive Ethernet port
|
|
On-Board Storage
|
Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB
|
|
Alarm
|
1 input, 1 output
|
|
Audio
|
1 input (line in); 1 output (line out)
|
|
Reset
|
Yes
|
|
Built-In Microphone
|
1 built-in microphone
|
|
Built-In Speaker
|
1 built-in speaker
|
|
Power
|
36VDC / IEEE802.3bt(PoE++)
|
|
Operating Conditions
|
-40 °C to 65 °C (-22 °F to 149 °F) Humidity 90% or less (non-condensing)
|
|
Demist
|
Yes
|
|
Material
|
Metal
|
|
Dimensions
|
Ø 206.4 mm × 337.3 mm (Ø8.13” × 13.27”)
|
|
Weight
|
1035g)
|
|
Protection
|
IP67, IK10
|
|
Basic Event
|
Motion detection, video tampering alarm, alarm input and output
|
|
Deep Learning Function
|
Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection
|
|
Smart Tracking
|
auto-tracking
|
|
Alarm Linkage
|
Upload to FTP, send email, trigger alarm output, trigger recording
|

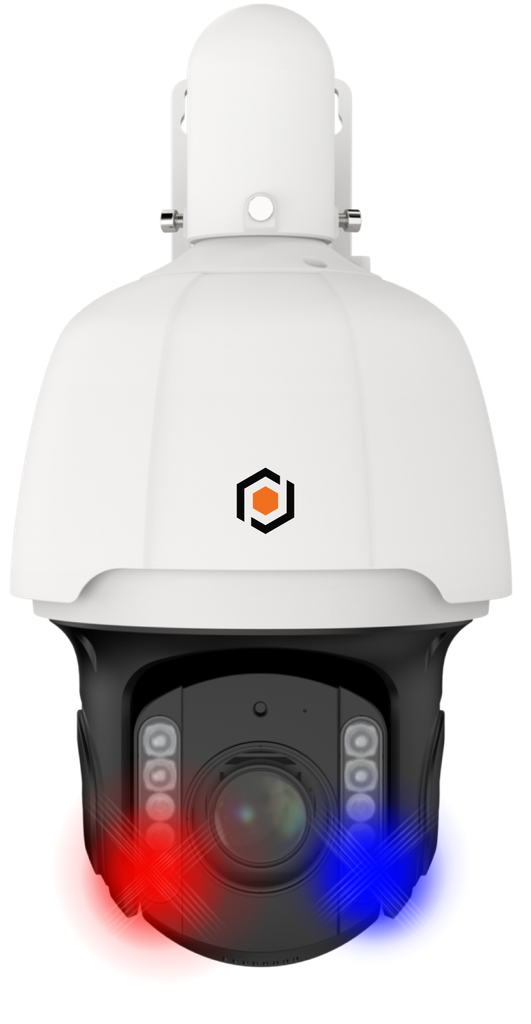

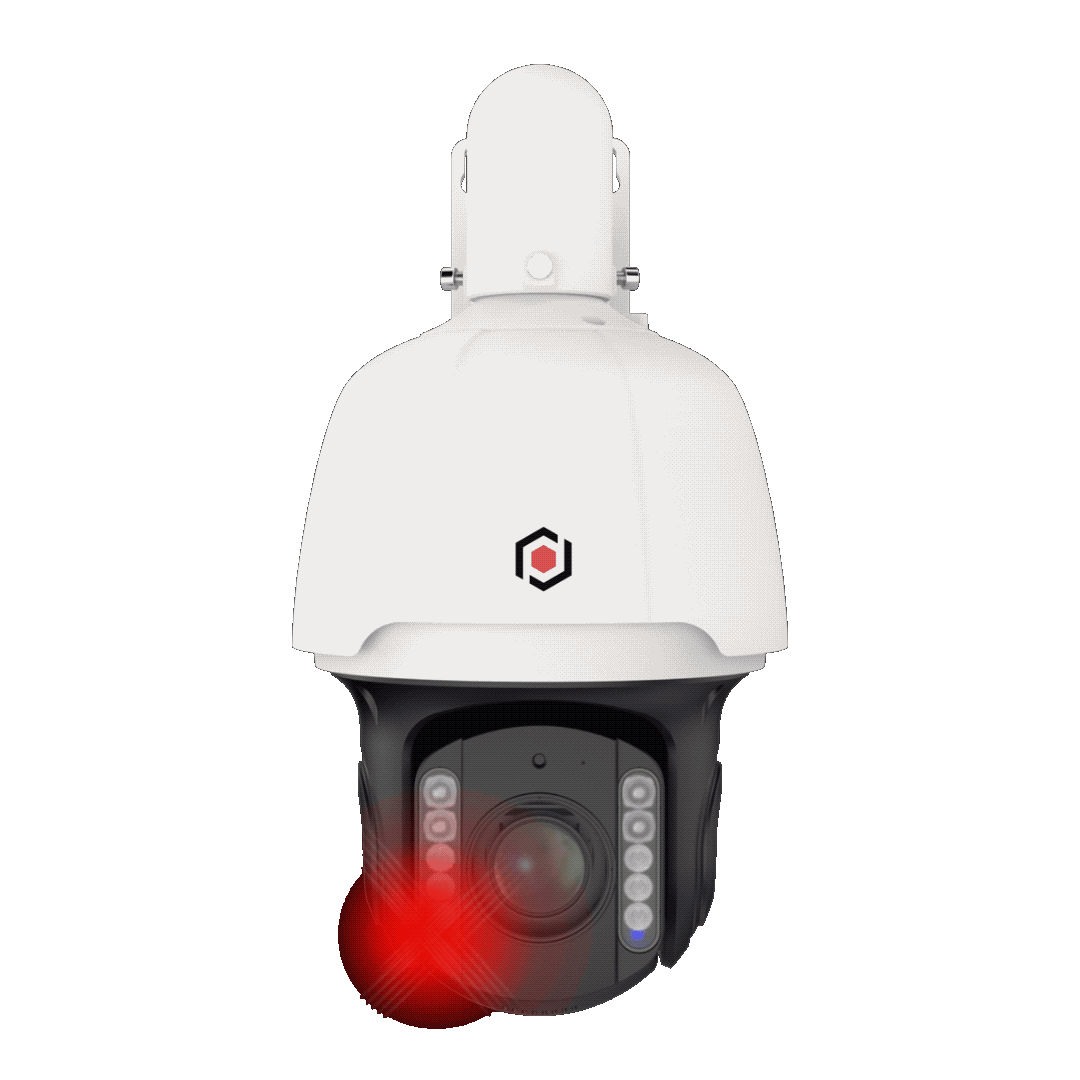

Deterrence Lights and Siren
