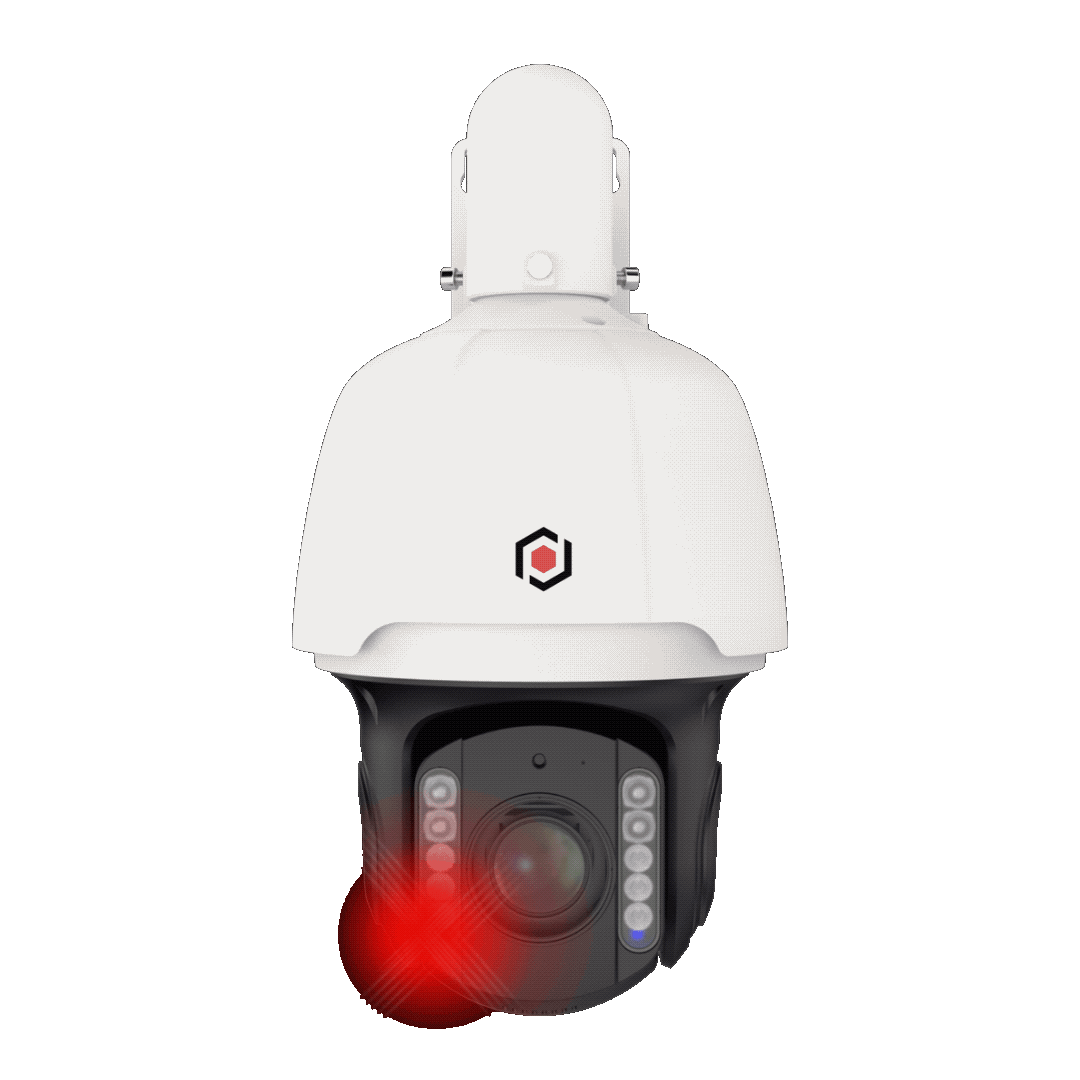

XPTZ37XIP8MP-AI-N

https://www.gsdgroupinc.com/web/image/product.template/128/image_1920?unique=923ba1d
PTZ
  • Deterrence Lights and Siren
  • True WDR
  • Alarm/Audio In/Out
  • 8MP Resolution
  • See in Color at Night
  • Impact Resistant
  • Waterproof & Dust-Tight
  • Micro SD Card Slot up to 256GB
  • Two-Way Communication
  • Auto-Tracking
  • 37X Optical Zoom 16X Digital Zoom
  • 5.5-202mm Lens
  • IR up to 200M
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Image Sensor
1/1.8” progressive scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
0.0005Lux @ (F1.6, AGC ON), B/W
Shutter Speed
1/5 s to 1/20000 s
Slow Shutter
Yes
Day & Night
IR cut filter
Zoom
37 × optical, 16 × digital
Focal Length
5.5 mm to 202 mm
FOV
60° to 2.31° (wide-tele) Vertical field of view
Aperture
Max. F1.6
Focus
Auto, semi-auto, manual
Supplement Light Range
up to 25 m, IR
Supplement Light Type
Hybrid (IR and White Light)
Movement Range(PAN)
360°
Movement Range(TILT)
-20° to 90° (auto flip)
Pan Speed
200°/s
Tilt Speed
Configurable from 0.6° to 90°/s, preset speed 100°/s
Proportional Pan
Yes
Presets
255
Patrol Scan
4 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Power-Off Memory
Yes
Park Action
Preset, pattern scan, auto scan, patrol scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan
Main Stream
25 fps (3840 × 2160, 3072 x 1728, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 × 960, 1280 × 720); 60 Hz
Sub-Stream
25 fps (1920 x 1080, 1280 × 720, 640 × 480, 320 × 240); 60 Hz
Third Stream
25 fps ( 640 × 480, 320 × 240); 60 Hz
Video Compression
H.265+/H.265/H.264+/H.264 Sub-stream
Video Bit Rate
16 kbps to 16384 kbps
H.264 TYPE
Baseline Profile/Main Profile/High Profile
H.265 TYPE
Main Profile
Region Of Interest (ROI)
8 fixed regions for each stream
Audio Compression
G.711alaw, G.711ulaw
Audio Bit Rate
64 Kbps (G.711)
Audio Sampling Rate
8 kHz
Environment Noise Filtering
Yes
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP
API
Onvif ( Profile S, Profile G, Profile T),Http API
Simultaneous Live View
Up to 20 channels
User/Host
administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings
Client
VMS
Web
IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)
120 dB
DEFOG
Digital defog
Image Stabilization
DIS
Image Setting
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privacy Mask
8 privacy masks
SNR
> 52 dB
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage
Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm
1 input, 1 output
Audio
1 input (line in); 1 output (line out)
Reset
Yes
Built-In Microphone
1 built-in microphone
Built-In Speaker
1 built-in speaker
Power
36VDC / IEEE802.3bt(PoE++)
Operating Conditions
-40 °C to 65 °C (-22 °F to 149 °F) Humidity 90% or less (non-condensing)
Demist
Yes
Material
Metal
Dimensions
Ø 206.4 mm × 337.3 mm (Ø8.13” × 13.27”)
Weight
1035g)
Protection
IP67, IK10
Basic Event
Motion detection, video tampering alarm, alarm input and output
Deep Learning Function
Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection
Smart Tracking
auto-tracking
Alarm Linkage
Upload to FTP, send email, trigger alarm output, trigger recording
