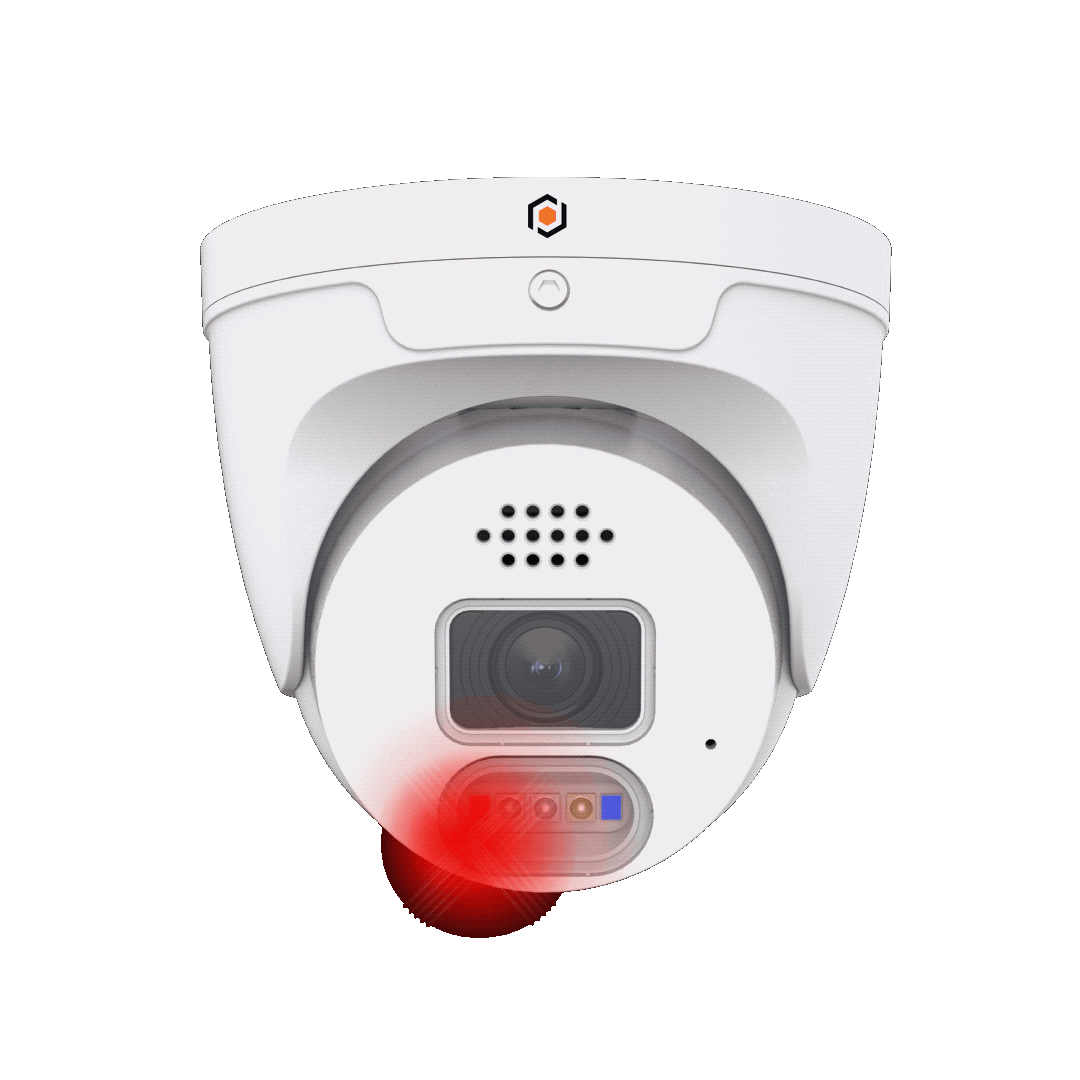

XEBATVIP5MP28-AI-L-B-64G

https://www.gsdgroupinc.com/web/image/product.template/71/image_1920?unique=923ba1d
EYEBALL
  • 5MP Resolution
  • 2.8mm Lens
  • IR up to 25M
  • Deterrence Lights and Siren
  • See in Color at Night
  • Waterproof & Dust-Tight
  • Two-Way Communication
  • 64GB Micro SD Card Included
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Color
WHITE, BLACK
Imaging Device
1/2.7”
Effective Pixels
5MP 2880 (H) x 1620 (V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
2.8 mm
Max. Aperture Ratio
F No. 1.0
Angular Field Of View
110°, Vertical
Min. Object Distance
2m
Lens Type
Fixed (M12)
IR LED
1
Warmlight
2
Red & Blue Light
2 (1 Red & 1 Blue)
IR Viewable Length
Up to 25m
Warmlight Viewable Length
Up to 20m
Type Of Complementary Light
Default warm light, switchable infrared light
Wide Dynamic Range
90dB
Digital Noise Reduction
3D DNR
Motion Detection
Off/On (8 Level)
Image Setting
Day&Night Mode/Full Color Mode/Schedule
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
SD Card
64GB Micro SD Card Included
Alarm
No
Audio
Built-in microphone & speaker
Custom Voice
Yes
Hardware Reset
Yes
AI Features
Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264
Resolution
Mainstream @30fps 5MP(2880x1620), 4MP(2560x1440) 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Substream @30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream @30fps VGA (640x480), QVGA (320x240)
Video Quality Adjustment
256Kbps ~ 8Mbps
Bitrate Control Method
CBR/VBR
IP
IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Application Programming Interface
ONVIF( Profil S/G/T)
Compatible Web Browsers
IE10/11, Safari V12.1/above, Firefox V.52/above, Google chrome V.57/above, Edge V.79/above
Operating Conditions
-35°+60°C/ Less than ≤ 95% RH
Ingress Protection (Waterproof)
IP67
Power Consumption
max 5.8W; POE (48V)
Input Voltage / Current
D12V/POE (IEEE802.3af)
Material
Metal
Dimensions
100*100*90mm
Weight
425g
