New

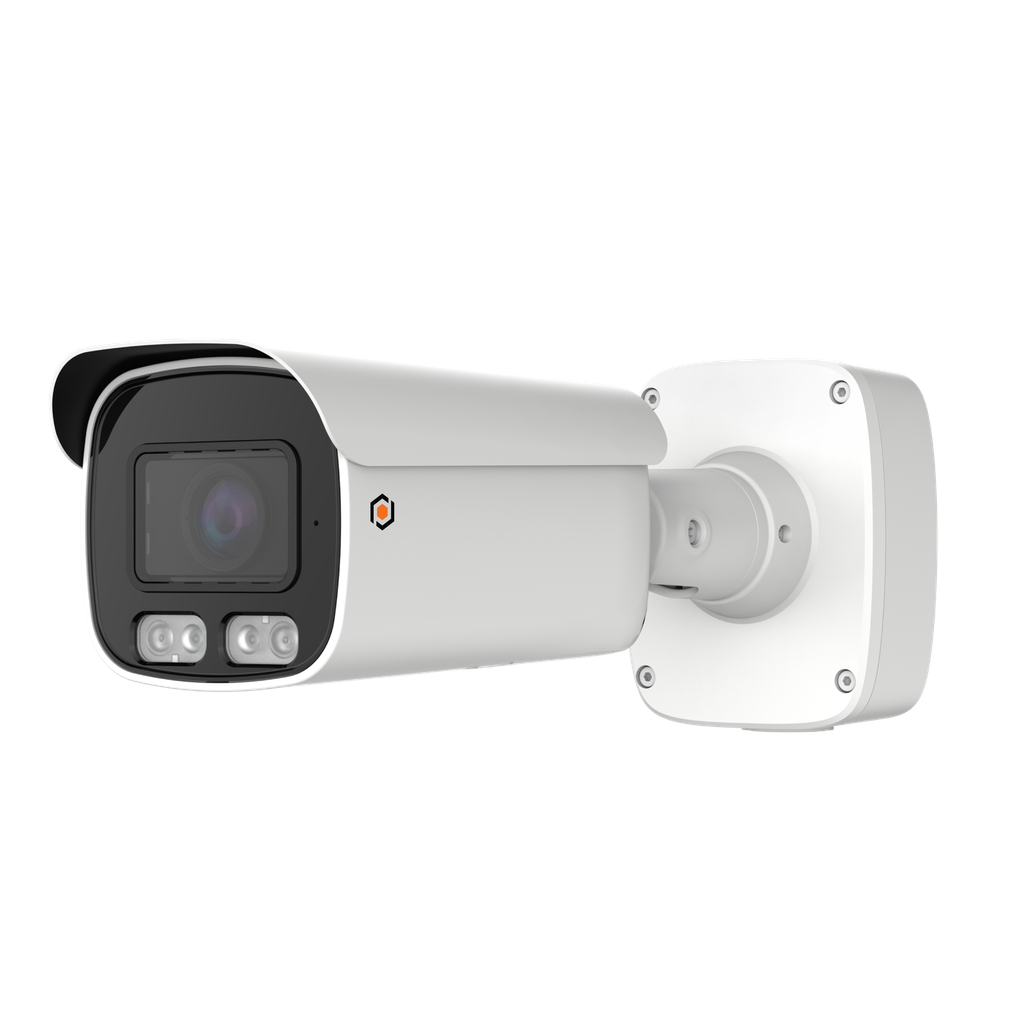

XB9ZA550IP8MP-AI
BULLET
-
True WDR
-
Alarm/Audio In/Out
-
5-50mm Motorized Lens
-
8MP Resolution
-
IR up to 80M
-
Waterproof and Dust-Tight
-
Micro SD Card Slot up to 256GB
- Imaging Device
- 1/2.8"
- Effective Pixels
- 8MP 3840(H)×2160(V)
- Scanning System
- Progressive CMOS
- Min. Illumination
- Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
- Focal Length (Zoom Ratio)
- 5.0 - 50 mm
- Max. Aperture Ratio
- F 2.0 ±5%
- Angular Field Of View
- 7-49°, Vertical
- Lens Type
- Motorized(Ø14)
- IR Viewable Length
- Up to 80m
- Camera Title
- Show/Hide
- Day & Night
- IR cut filter with auto switch (Day/Night/Auto/Schedule)
- Backlight Compensation
- Off/On (5 Zones)
- Wide Dynamic Range
- 120dB
- Digital Noise Reduction
- 3D DNR
- Motion Detection
- Off/On (8 Levels)
- Privacy Masking
- Off/On (4 Zones, Rectangle)
- Gain Control
- Auto
- White Balance
- Auto/Manual
- Electronic Shutter Speed
- 1/5 ~ 1/20000s
- Alarm
- 1 input, 1 output
- Audio
- 1 input (RCA), 1 output (RCA)
- Hardware Reset
- Yes
- Smart Features
- Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC)
- Ethernet
- RJ45(10/100BASE-T)
- Video Compression Format
- H.265/H.264
- Resolution
- Mainstream @30fps 8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280*960),720P(1280x720) Substream @30fps 1080P(1920x1080), 720P(1280x720), VGA(640x480) Mobilestream @30fps VGA(640x480), QVGA(320x240)
- Video Quality Adjustment
- 256Kbps ~ 16Mbps
- Bitrate Control Method
- CBR/VBR
- Streaming Capability
- Triple-Stream(Main/Sub/Mobile)
- Protocol
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security
- IP address filter;complicated password; Authenticated username and password
- Streaming Method
- Unicast/Multicast
- Application Programming Interface
- ONVIF( Profile S/G/T)
- Compatible Web Browsers
- IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
- Operating Conditions
- -35~+60°C/less than ≤ 95% RH
- Ingress Protection
- IP67
- Input Voltage / Current
- D12V/POE(IEEE802.3af)
- Power Consumption (IR OFF)
- 4W-5W
- On-Board Storage
- Micro SD slot, up to 256Go
- Power consumption (IR ON)
- 8.5W-10W
- Dimensions (HXWXD)
- Ø90 X 301.11mm
- Material
- White/Metal
- Weight
- appr. 1427g
