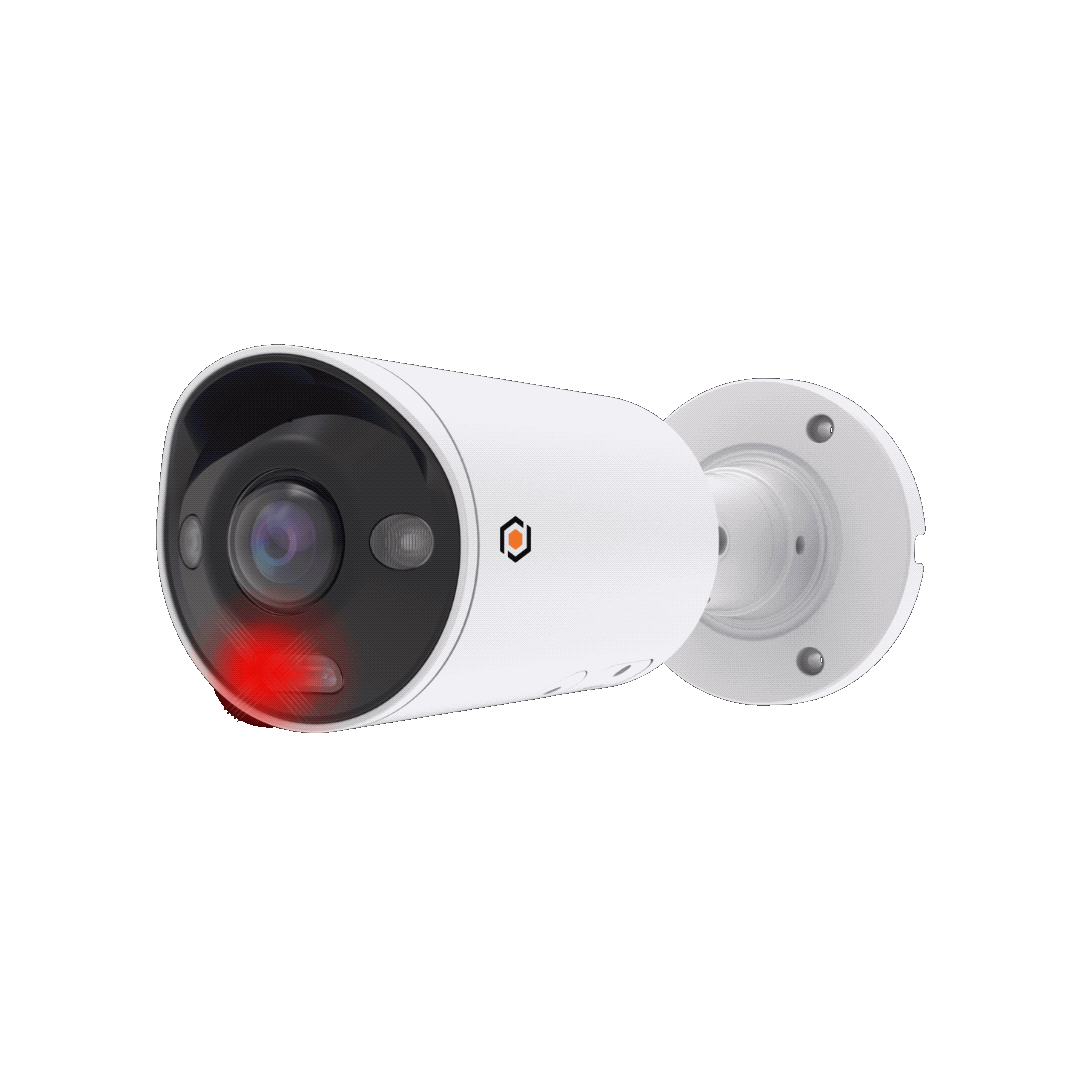

XB7FPAN20IP8MP-AI

https://www.gsdgroupinc.com/web/image/product.template/80/image_1920?unique=923ba1d
BULLET
  • IR up to 25M
  • Deterrence Lights and Siren
  • Alarm/Audio In/Out
  • 8MP Resolution
  • See in Color at Night
  • Waterproof & Dust-Tight
  • Micro SD Card Slot up to 256GB
  • Two-Way Communication
  • 2.0mm Lens
  • 180° Panoramic
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Imaging Device
1/2.8"
Effective Pixels
8MP 3840(H)×2160(V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
2.0mm
Max. Aperture Ratio
F No. 2.4
Angular Field Of View
180°, Vertical
Min. Object Distance
0.6 m
Lens Type
M12
IR LED
2
Warmlight
2
IR Viewable Length
Up to 25m
Warmlight Viewable Length
Up to 15m
Backlight Compensation
Off/On (5 Zones)
Motion Detection
Off/On (8 Levels)
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Image Setting
Day&Night Mode/Full Color Mode/Schedule
Privacy Masking
Off/On (4 Zones, Rectangle)
Gain Control
Auto
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
1 input, 1 output
Audio
Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
Hardware Reset
Yes
Smart Features
Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264
Resolution
Mainstream @30fps 8MP(3840x2160), 5MP(2592x1944,3072x1728) 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080) 960P(1280*960), 720P(1280x720) Substream @30fps 720P(1280x720),VGA(640x480) Mobile Stream @30fps VGA(640x480)
Video Quality Adjustment
256Kbps ~ 16Mbps
Bitrate Control Method
CBR/VBR
Streaming Capability
Triple-Stream(Main/Sub/Mobile)
IP
IPv4/IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Streaming Method
Unicast/Multicast
Application Programming Interface
ONVIF( Profile S/G/T)
Compatible Web Browsers
IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
Operating Conditions
-35 ~ +60°C/less than ≤ 95% RH
Ingress Protection
IP67
Input Voltage / Current
D12V/POE(IEEE802.3af)
Power Consumption
Max 12W
Color/material
White/Metal
Dimension (WXHXD)
151.3*74.1*74.1mm
Weight
388g
