  2. TEBFDATVIP5MP28-AI

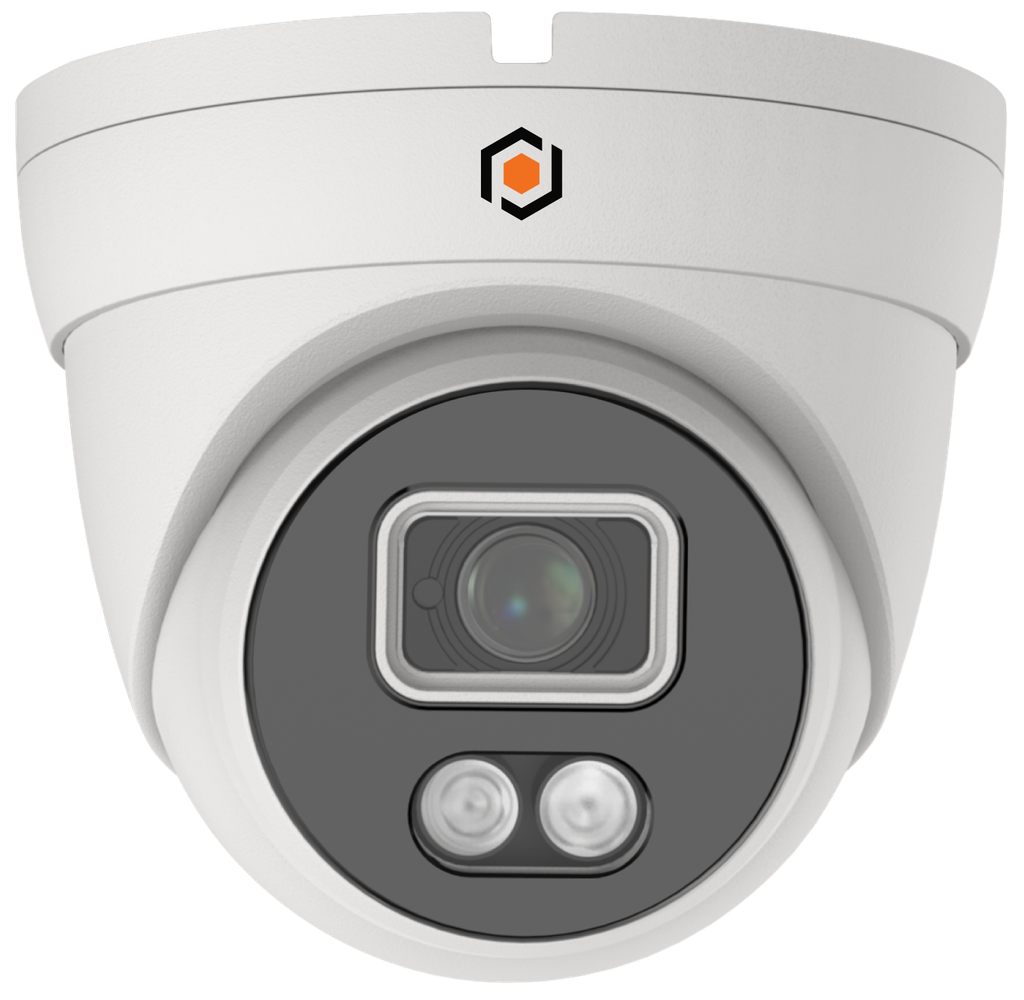

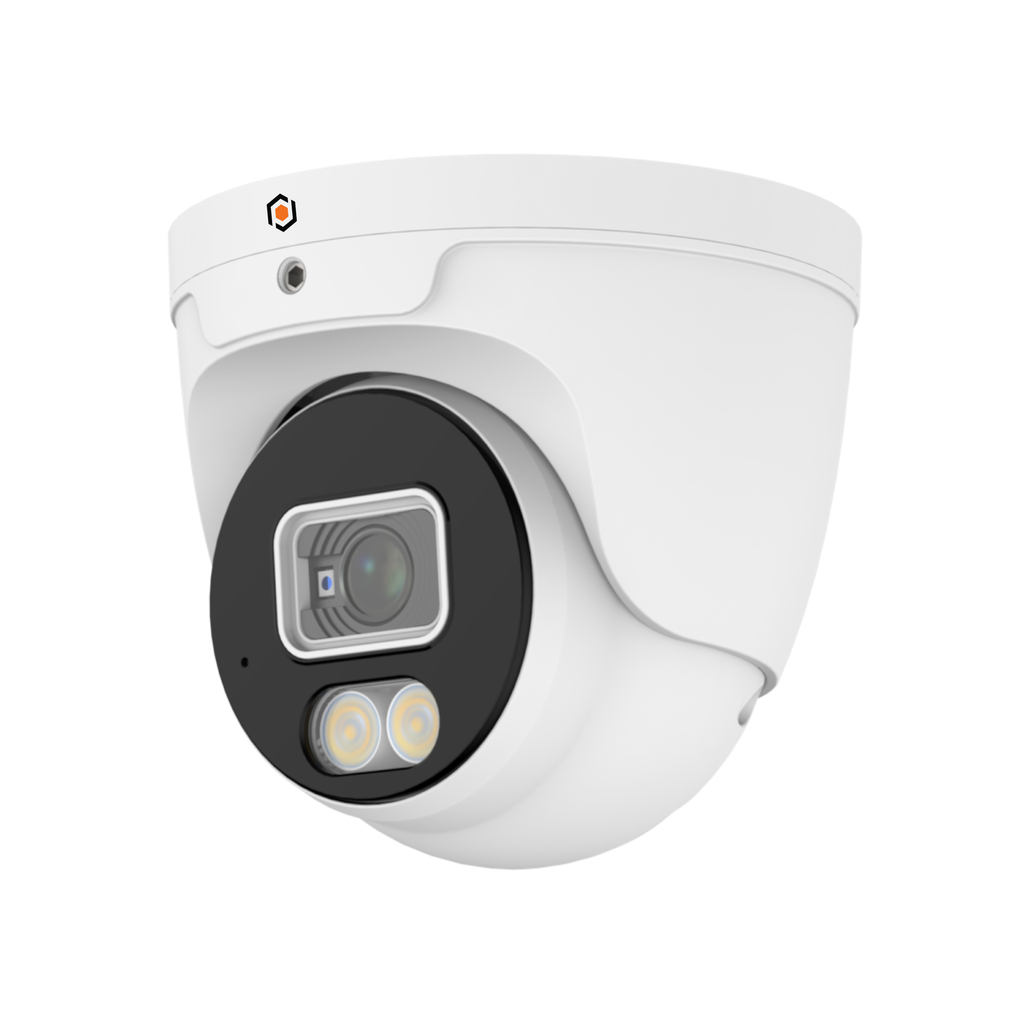

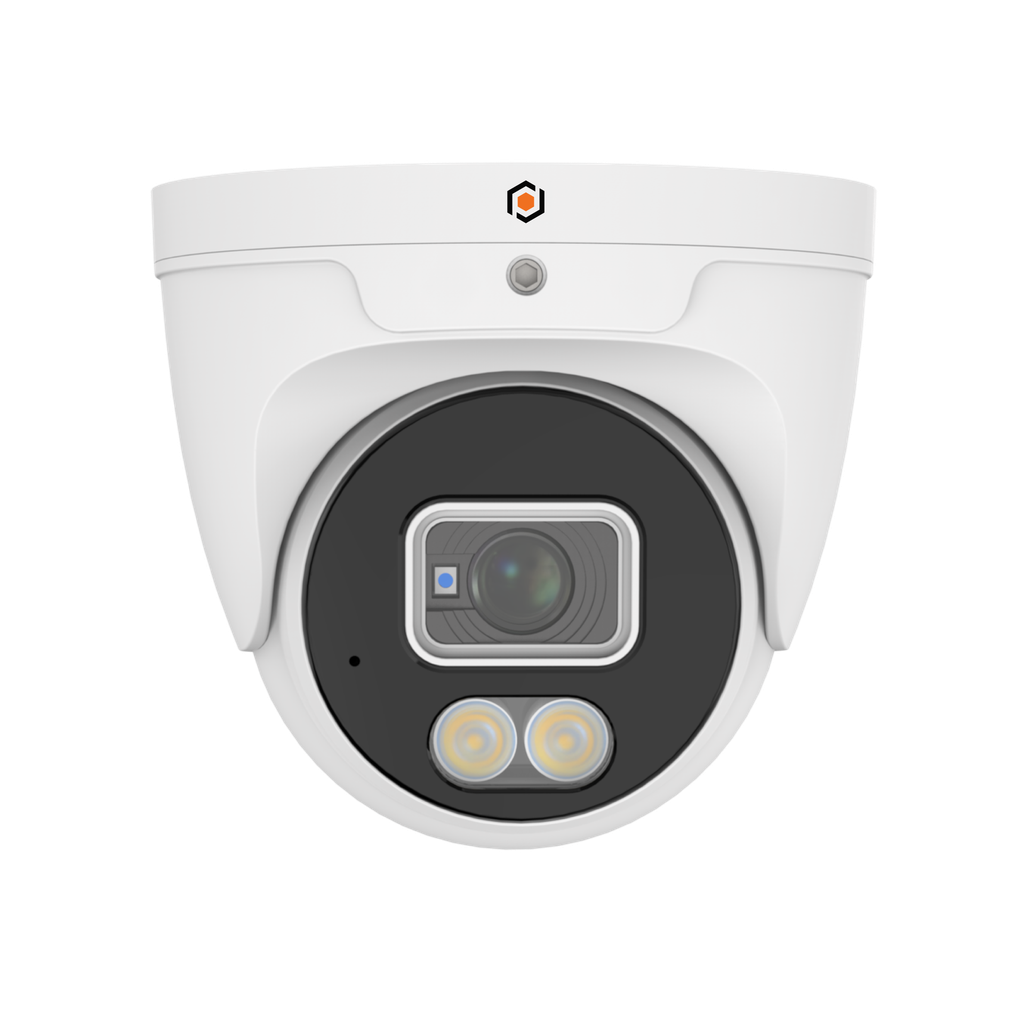

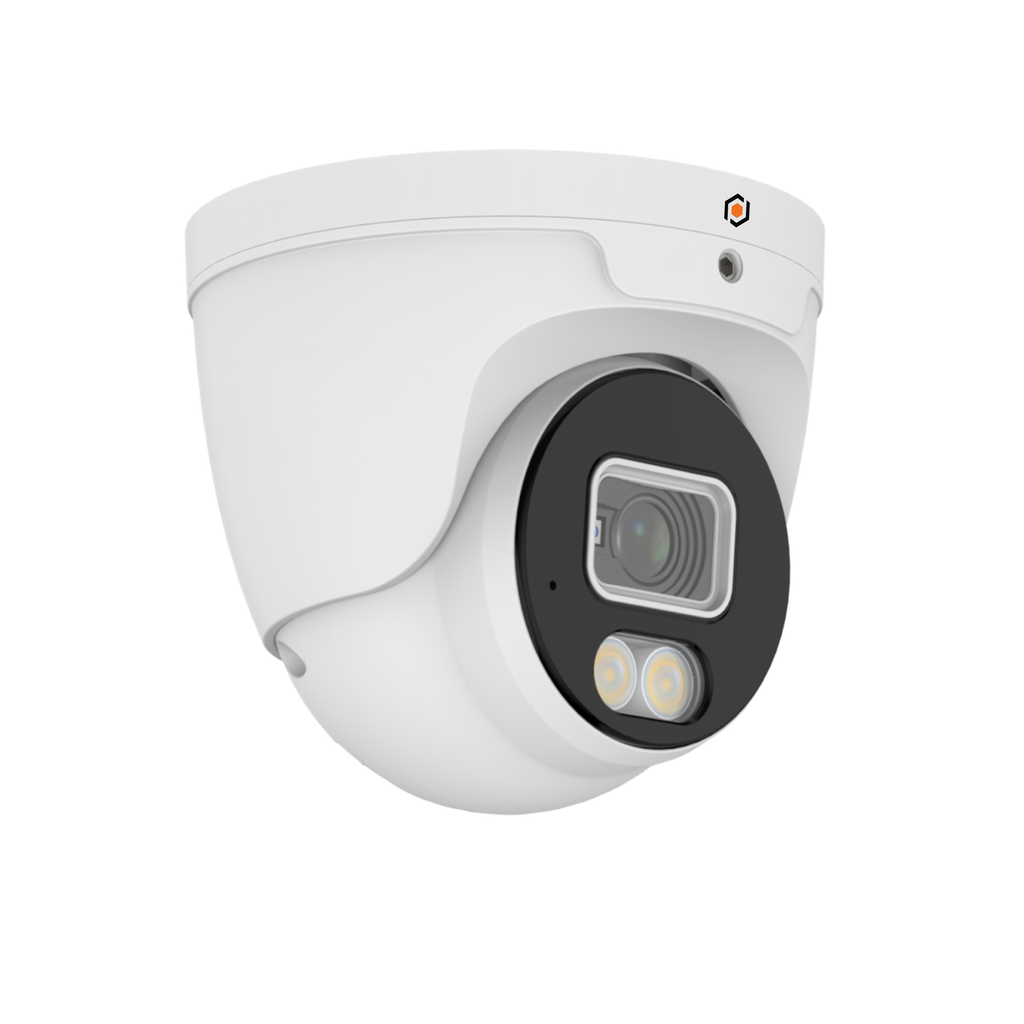

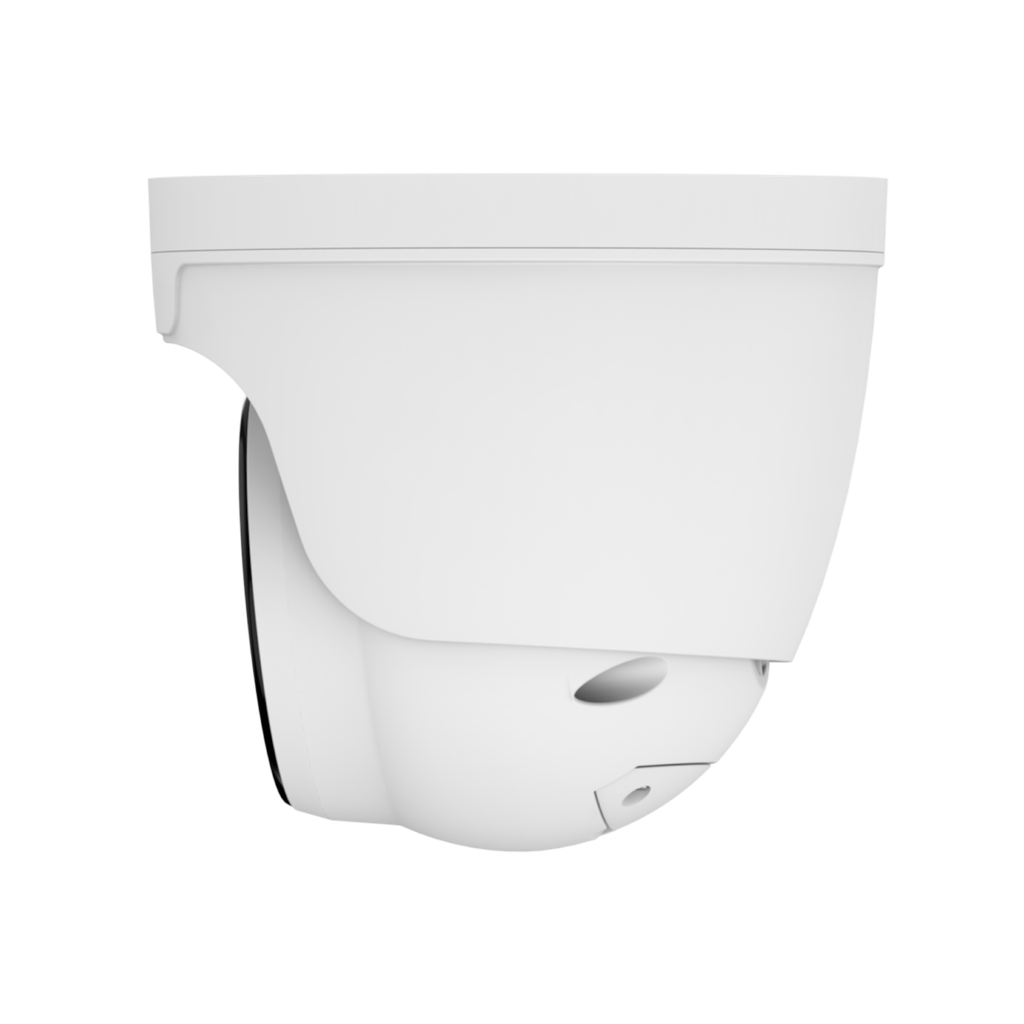

TEBFDATVIP5MP28-AI

https://www.gsdgroupinc.com/web/image/product.template/331/image_1920?unique=37c7eea
EYEBALL
  • 5MP Resolution
  • 2.8mm Lens
  • IR up to 30M
  • Waterproof and Dust-Tight
  • Built-in Microphone
  • Micro SD Card Slot up to 256GB
  • See Color at Night
  • ONVIF Compliant (G/M/S/T)
CE FCC RoHS NDAA Onvif GMST
Book a demo Find a distributor
Imaging Device
1/2.7”
Effective Pixels
5MP 2880 (H) x 1620 (V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
2.8 mm
Max. Aperture Ratio
F No. 1.0
Angular Field Of View
110°, Vertical
Min. Object Distance
2m
Lens Type
Fixed (M12)
IR LED
2
Warmlight
2
IR Viewable Length
Up to 30m
Warmlight Viewable Length
Up to 25m
Backlight Compensation
Off/On (5 Zones)
Type Of Complementary Light
Default warm light, switchable infrared light
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Motion Detection
Off/On (8 Levels)
Image Setting
Full Color Mode/Day&Night Mode/Smart IIIumination
Privacy Masking
Off/On (4 Zones, Rectangle)
Gain Control
Auto
White Balance
Auto/Manual/Indoor
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
N/A
Audio
Built-in microphone
Hardware Reset
Yes
Smart Features
Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264
Resolution
Mainstream @30fps 5MP(2880x1620), 4MP(2560x1440) 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Substream @30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream @30fps VGA (640x480), QVGA (320x240)
Video Quality Adjustment
256Kbps ~ 8Mbps
Bitrate Control Method
CBR/VBR
IP
IPv6
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Streaming Method
Unicast/Multicast
Security
IP address filter;complicated password; Authenticated username and password
Application Programming Interface
ONVIF( Profile S/G/T)
Compatible Web Browsers
IE10/11, Safari V12.1/above, Firefox V.52/above, Google chrome V.57/above, Edge V.79/above
Operating Conditions
-35°+60°C/ Less than ≤ 95% RH
Color
WHITE, BLACK
Ingress Protection
IP67
Input Voltage / Current
D12V/POE (IEEE802.3af)
Power Consumption
max 4.3W; POE (48V)
Color/material
White/Metal
Dimensions (LXHXP)
100*100*90mm
Weight
415g
