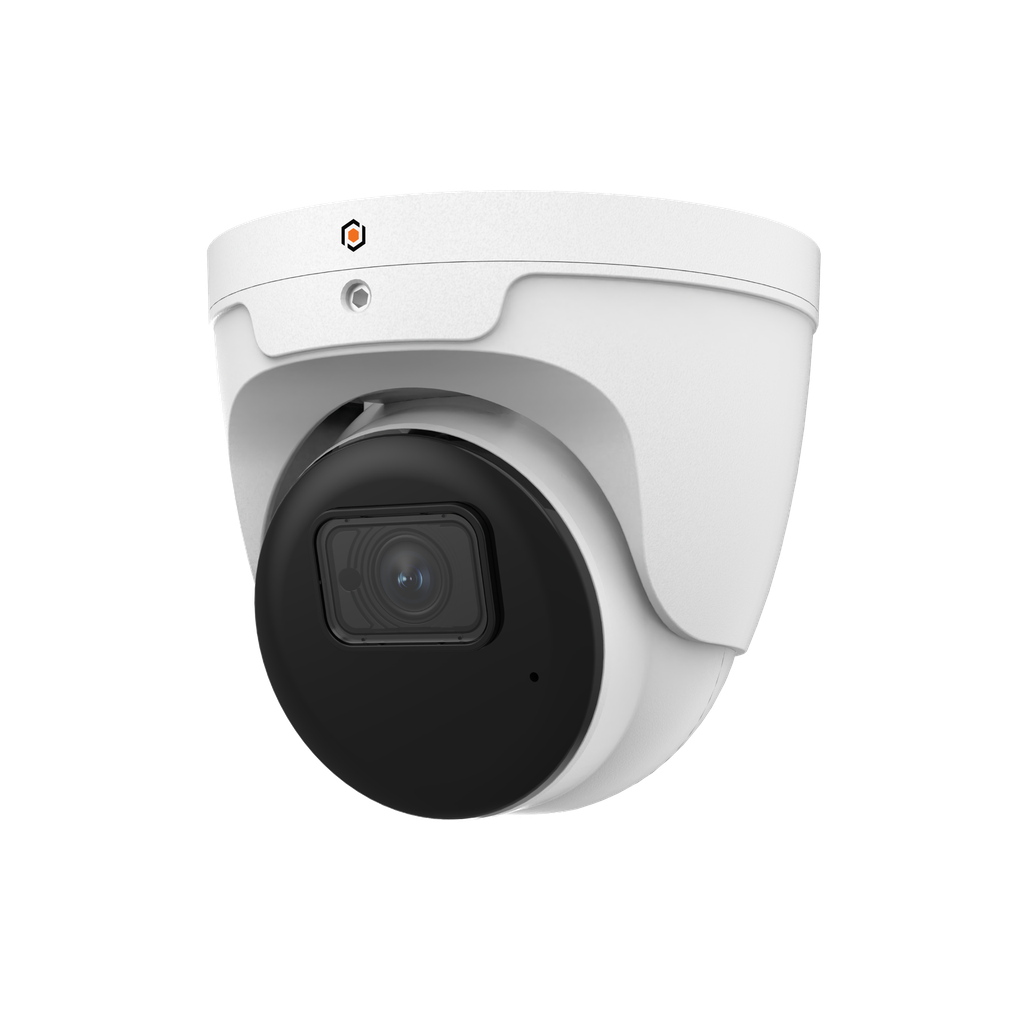

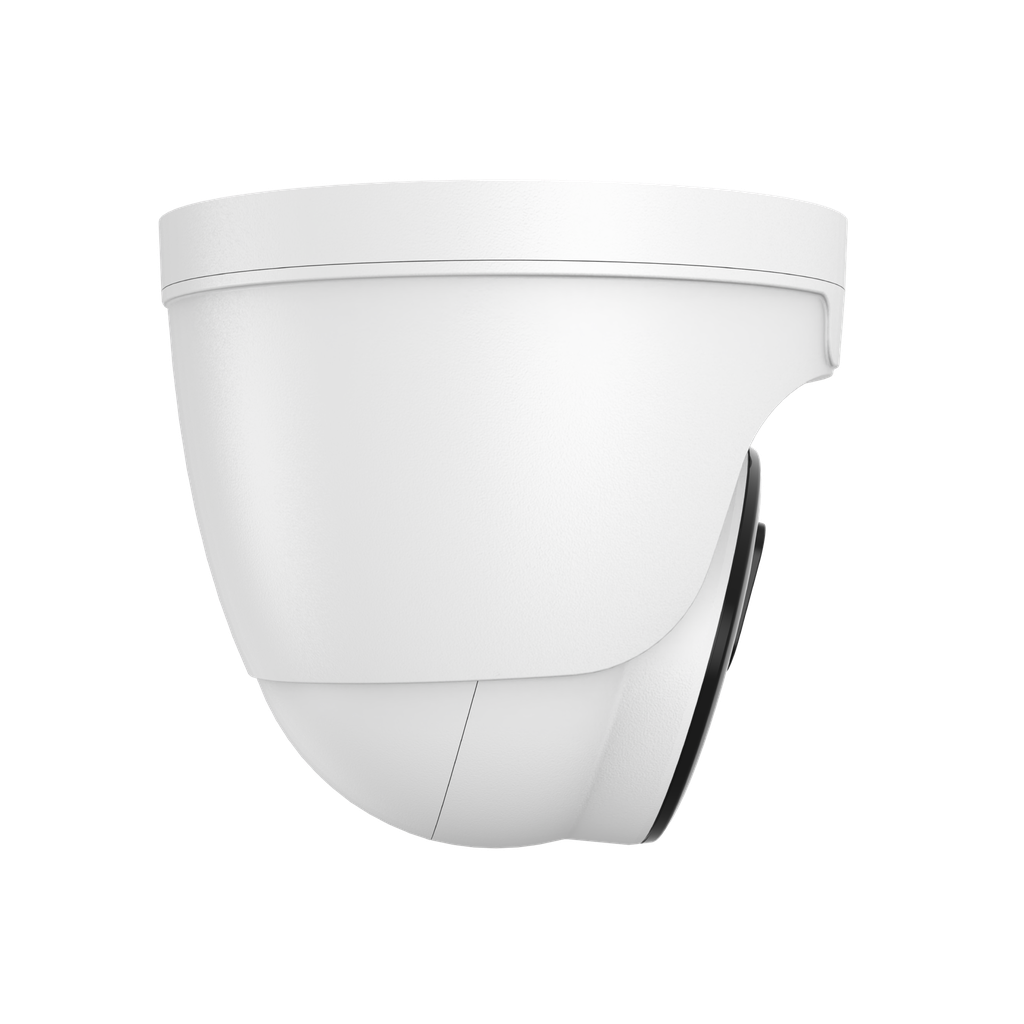

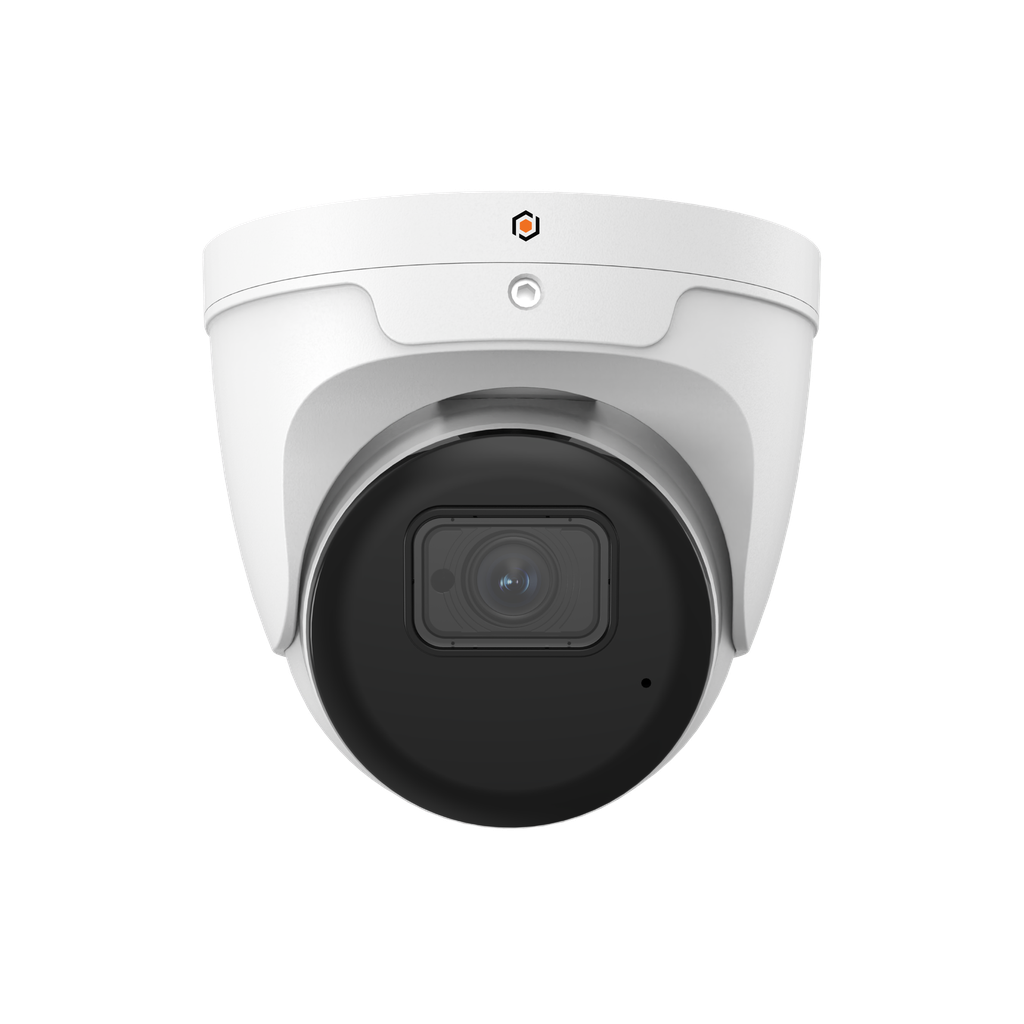

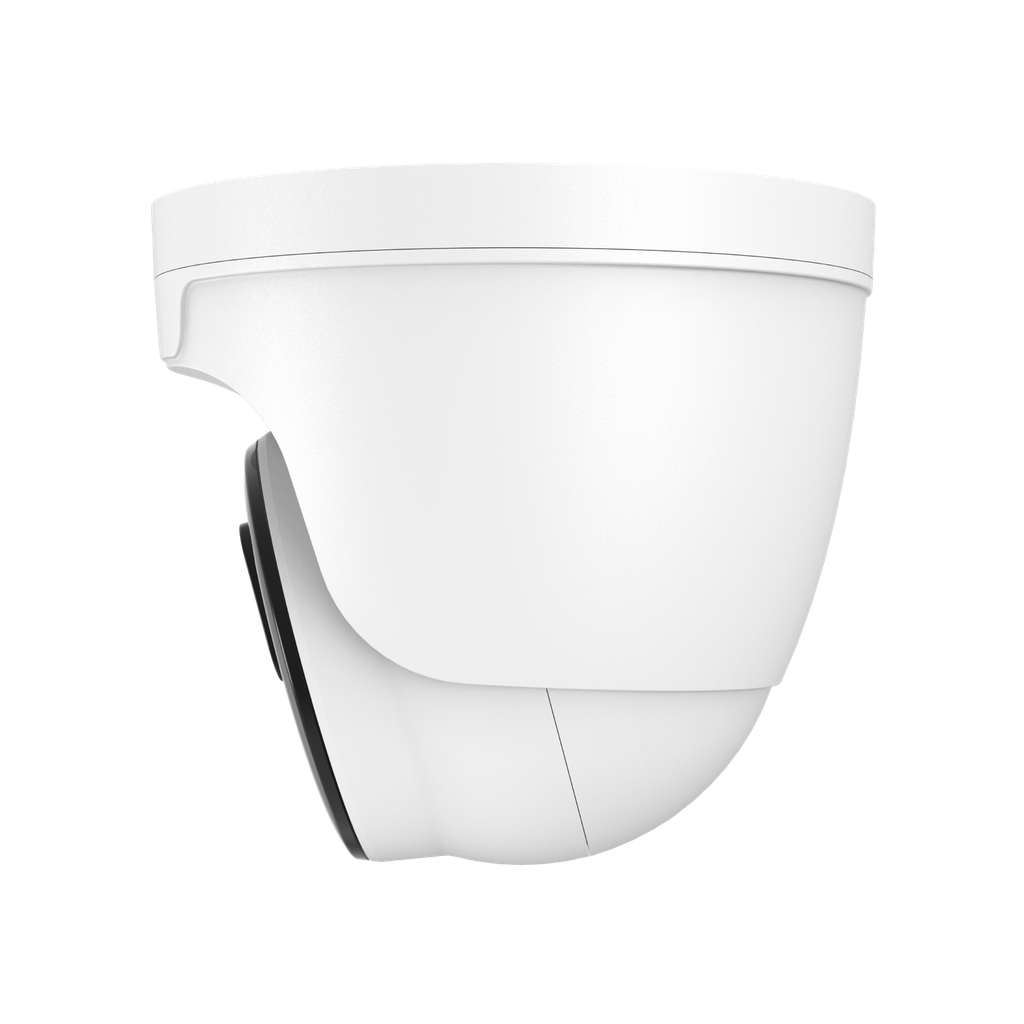

TEBFDAIP5MP36-AI-L

https://www.gsdgroupinc.com/web/image/product.template/1038/image_1920?unique=32fc12b
EYEBALL
  • 5MP Resolution
  • 3.6mm Lens
  • Waterproof and Dust-Tight
  • Built-in Microphone
  • Micro SD Card Slot up to 256GB
  • IR up to 20M
  • ONVIF Compliant (G/M/S/T)
CE FCC RoHS NDAA Onvif GMST
Book a demo Find a distributor
Imaging Device
1/2.7”
Effective Pixels
5MP 2880(H) x 1620 (V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
3.6 mm
Max. Aperture Ratio
F No. 1.6
Angular Field Of View
87°, Vertical
Min. Object Distance
1.8m
Lens Type
Fixed(M12)
IR Viewable Length
Up to 20m
Camera Title
Show/Hide
Day & Night
IR cut filter with auto switch (Day/Night/Auto/Image/Schedule)
Backlight Compensation
Off/On (5 Zones)
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Motion Detection
Off/On (8 Levels)
Privacy Masking
Off/On (4 Zones, Rectangle)
Gain Control
Auto
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
On-Board Storage
Micro SD slot, up to 1TB
Alarm
NA
Audio
Built-in microphone
Hardware Reset
Yes
Smart Features
Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264
Resolution
Mainstream@30fps 5MP(2880x1620),4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Substeam@30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobilestream@30fps VGA(640x480), QVGA (320x240)
Video Quality Adjustment
256Kbps ~ 8Mbps
Bitrate Control Method
CBR/VBR
Streaming Capability
Triple-Stream(Main/Sub/Mobile)
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter;complicated password; Authenticated username and password
Streaming Method
Unicast/Multicast
Application Programming Interface
ONVIF( Profile S/G/T)
Compatible Web Browsers
IE10/11, Chrome V.57/above, Firefox V.52/above, Safari V.12/above, Edge V.79/above
Operating Conditions
-35°+65°C/less than ≤ 95% RH
Ingress Protection
IP67
Input Voltage / Current
D12V/POE(IEEE802.3af)
Power Consumption (IR OFF)
2W-3W
Color
WHITE, BLACK
Power consumption (IR ON)
4W-5.5W
Color/material
White/Metal
Dimension (WXHXD)
Ø100x90mm
Weight
415g
