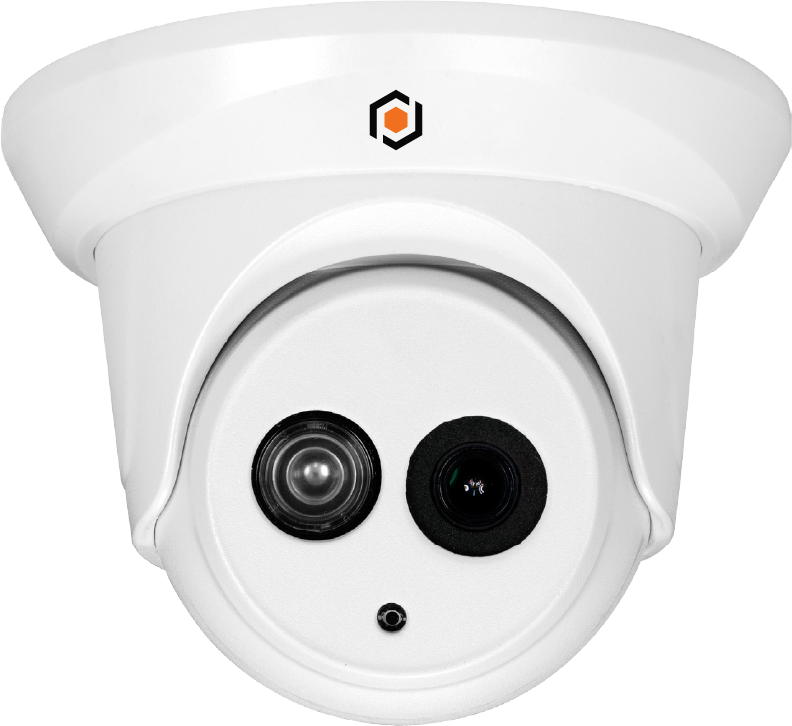

T2IP5MP28-L-N

TURRET

Book a Demo Find a Distributor Find an installer

Privacy Masking: Off/On (4 Zones, Rectangle)
Gain Control: Auto
White Balance: Auto/Manual
Electronic Shutter Speed: 1/5 ~ 1/20000s
On-Board Storage: Micro SD slot, up to 1TB
Alarm: NA
Audio: 1 Input, 1 Output
Hardware Reset: Yes
Smart Features: Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
Ethernet: RJ45(10/100BASE-T)
Video Compression Format: H.265/H.264
Resolution: Mainstream@30fps 5MP(2880x1620),4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280X960), 720P(1280x720) Substeam@30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobilestream@30fps VGA(640x480), QVGA (320x240)
Video Quality Adjustment: 256Kbps ~ 8Mbps
Bitrate Control Method: CBR/VBR

Streaming Capability: Triple-Stream(Main/Sub/Mobile)
Protocol: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security: IP address filter;complicated password; Authenticated username and password
Application Programming Interface: ONVIF( Profile S/G/T)
Compatible Web Browsers: IE8,9,10,11, Safari V.11/above, Firefox V.51/above Google chrome V.44/above
Operating Conditions: -40°+60°C/less than ≤ 95% RH
Ingress Protection: IP67
Input Voltage / Current: D12V/POE(IEEE802.3af)
Power Consumption (IR OFF): 2W-3W
Power consumption (IR ON): 4W-5.5W
Color/material: White/Metal
Dimension (WXHXD): Ø128.6 X98.6mm
Weight: appr. 474g
