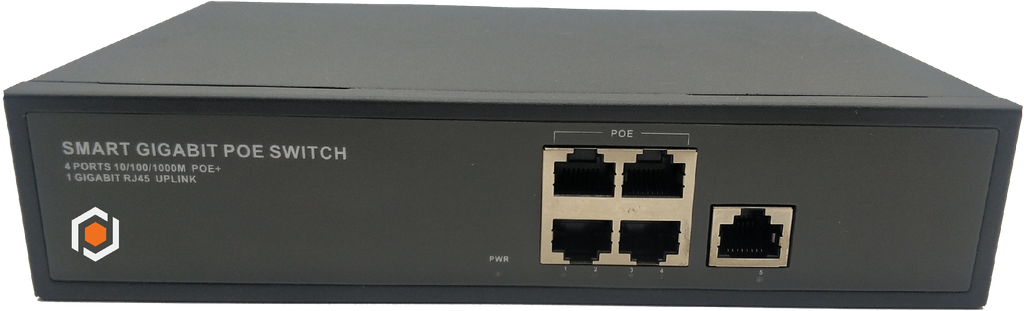

SWC5POE-GIGA
UNMANAGEABLE SWITCH
-
Integrated Power Supply, Total 65W
-
1 Giga Uplink Port
-
12 Gbps Switching Capacity
-
All Giga Port (10/100/1000Mbps)
-
Up to 30 Watts Per Port
-
Compatible with Server Rack
- Power Supply Mode
- Mains on load
- Voltage Range
- AC 100~240V
- Power Consumption
- The device <5W | POE power supply <65W
- Network Ports
- 10/100/1000Mbps Ethernet port Adaptive control Uplink 1 10/100/100Mbps RJ45
- Transmission Distance
- 0~100m 1 uplink Ethernet Port
- Transmission Media
- Cat5e/6 standard UTP cable
- POE Agreement
- IEEE802.3 af/at standards
- POE Power Supply Mode
- End-Span Method
- POE Power Supply Wattage
- Each port≤30W,Whole device<65W
- Network Standard
- IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T
- Swap Mode
- Store-and-forward
- Switch Capacity
- 12Gbps
- Mac Address List
- 8K
- Power Indicator Light
- One power light (green)
- Optical Fiber Port Indicator
- One fiber link indication light ( green) Green light keeps on when the fiber port is well connected;
- POE Indicator
- 1~24 PoE indicator light
- POE Network Port LED
- 1~4 port ( green light on RJ45 jack) Keeps on when normally connected Blinking when transceiver data
- Surge Immunity
- IEC61000-4-5
- Electrostatic Protection
- level 3 1a Air discharge
- Working Temperature
- -10°C~ 55°C
- Storage Temperature
- -40°C~ 85°C
- Humidity (Non-Congeal)
- 0~95%
- Dimensions (L*W*H)
- 202x140x45MM
- Color
- BLACK
- Weight
- 1kg
- Mean Time Between Failures (MTBF)
- >50000h
