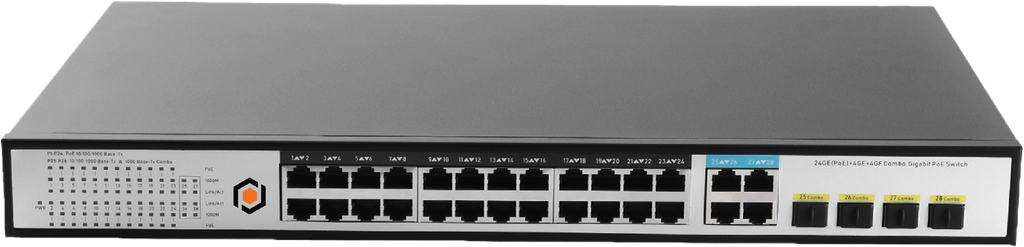

SWC32POE-GIGA
-
UP TO 30 WATTS PER PORT
-
COMPATIBLE WITH SERVER RACK
-
56 GBPS SWITCHING CAPACITY
-
24 GIGABIT PORTS (10/100/1000MBPS)
-
INTEGRATED POWER SUPPLY, TOTAL 500W
-
4 GIGA UPLINK PORTS 4 SFP PORTS
Download the
Smart Guardian App
24 PORTS | POE | 4*RJ45 et 4*SFP UPLINKS | 500W | RACKMOUNT | 120V | BANDWITH GIGA
PRODUCT SPECIFICATIONS
| Power Supply Mode | Mains on load |
| Voltage Range | AC 100-240V |
| Power Consumption | The device <15W, POE power supply <500W |
| Network Ports | 10/100/1000 BASE-T RJ45 Auto-MDI/MDI-X port 4 additional Gigabit TP/SFP combo ports |
| Transmission Distance | 0~100m 4 Ethernet Uplink Port |
| Transmission Media | Cat5e/6 standard UTP cable 4 Ethernet Uplink Port |
| POE Agreement | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| POE Power Supply Mode | End-Span Method |
| POE Power Supply Wattage | Each port≤30W, Whole device<500W |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure |
| Swap Mode | Store-and-forward |
| Switch Capacity | 56Gbps |
| Mac Address List | 8K |
| Power Indicator Light | One power light (green) |
| Optical Fiber Port Indicator | One fiber link indication light ( green) Green light keeps on when the fiber port is well connected; Blinking when transceiver data |
| Uplink Port | On, port is link on; Off, port is link down; |
| POE Indicator | 1~24 PoE indicator light |
| POE Network Port LED | 1~24 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data |
| Surge Immunity | IEC61000-4-5 |
| Electrostatic Protection | level 3 1a Air discharge |
| Working Temperature | -10°C~ 55°C |
| Storage Temperature | -40°C~ 85°C |
| Humidity (Non-Congeal) | 5~95% |
| Dimensions (L*W*H) | 440mm×290mm×45mm |
| Color | BLACK |
| Weight | 4.5kg |
| Mean Time Between Failures (MTBF) | >50000h |
