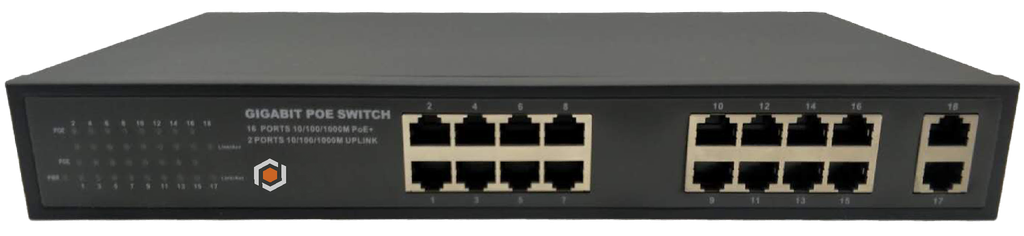

SWC18POE-GIGA
UNMANAGEABLE SWITCH
-
Up to 30 Watts Per Port
-
Compatible with Server Rack
-
2 Giga Uplink Ports
-
Integrated Power Supply, Total 260W
-
40 Gbps Switching Capacity
-
16 Gigabit Ports (10/100/1000Mbps)
- Voltage Range
- AC 100-240V
- Power Consumption
- The device <5W | POE power supply <260W
- Network Ports
- 10/100/1000Mbps Ethernet port, adaptive control 2-Port 10/100/1000Mbps RJ45 interface for uplink
- Transmission Distance
- 0~100m
- Transmission Media
- Cat5e/6 standard UTP cable
- POE Agreement
- IEEE802.3 af/at standards
- POE Power Supply Mode
- End-Span Method
- POE Power Supply Wattage
- Each port≤30W | Whole device<260W
- Network Standard
- IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T
- Swap Mode
- Store-and-forward
- Switch Capacity
- 36Gbps
- Mac Address List
- 8K
- Power Indicator Light
- One power light (green)
- POE Indicator
- 1~16 PoE indicator light (yellow)
- Network Port LED
- 1~18 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
- Surge Immunity
- IEC61000-4-5
- Electrostatic Protection
- level 3 1a Air discharge
- Working Temperature
- -10°C~ 55°C
- Storage Temperature
- -40°C~ 85°C
- Humidity (Non-Congeal)
- 0~95%
- Dimensions
- 310mm×180mm×44.5mm
- Color
- BLACK
- Weight
- 3Kgs
- Mean Time Between Failures (MTBF)
- >50000h
