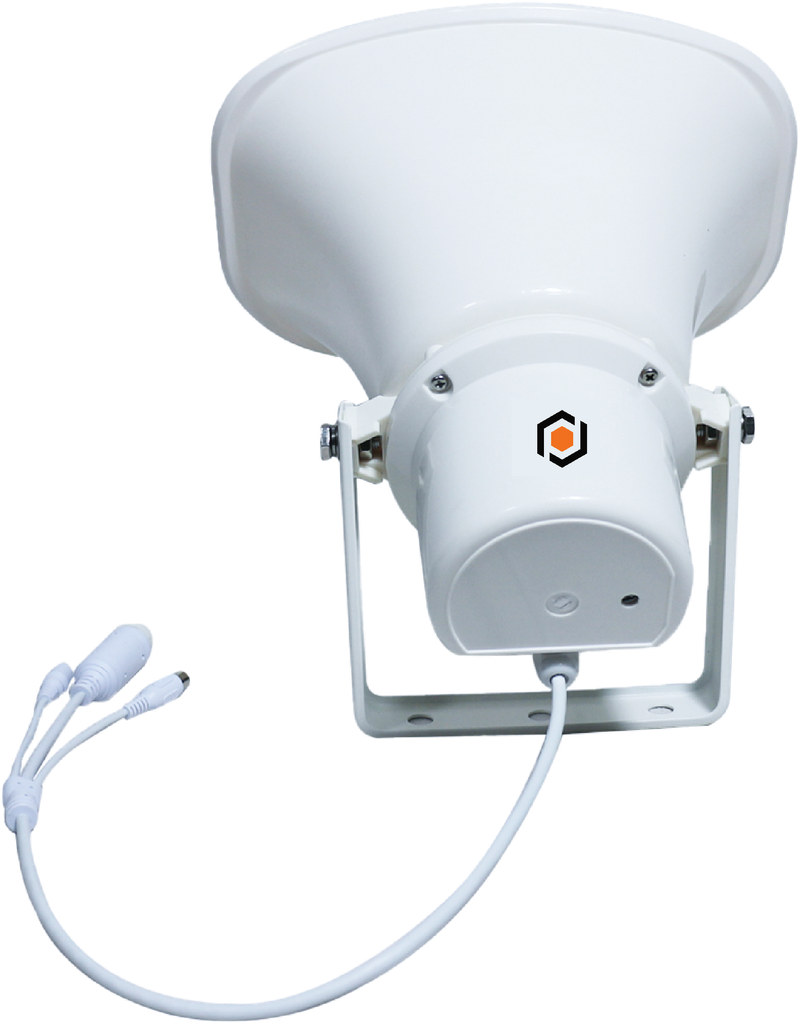

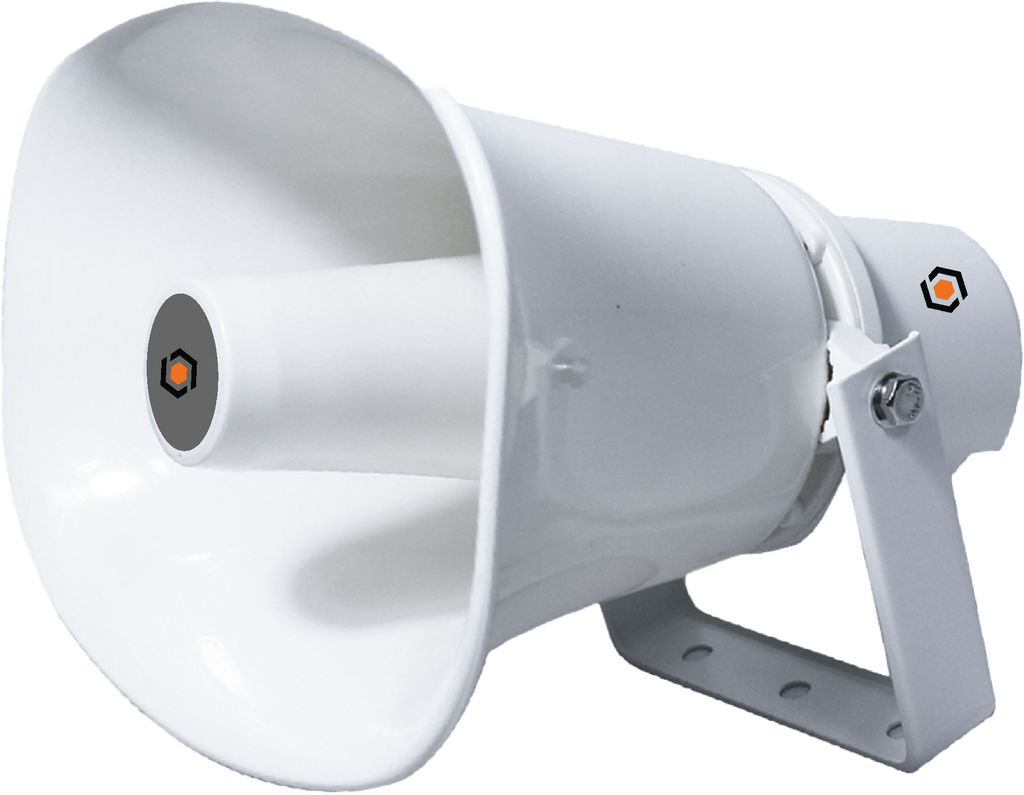

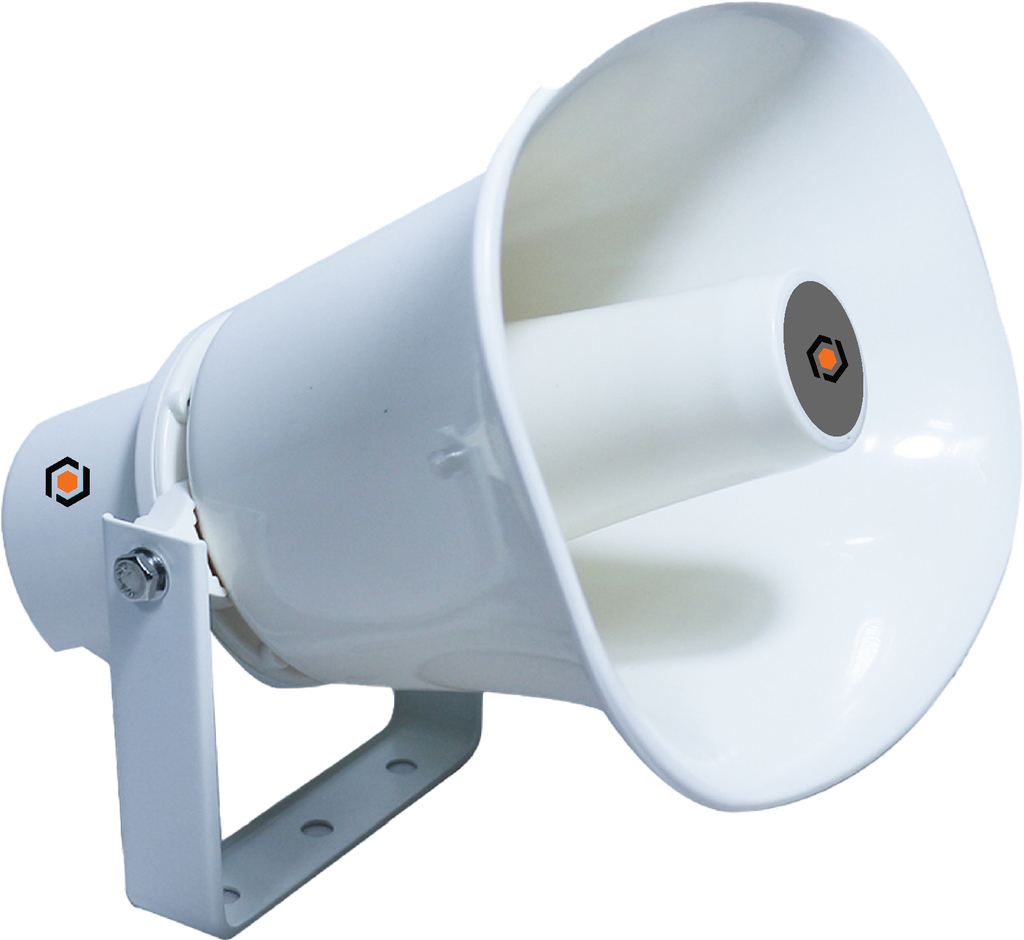

SPK-30W-12V

https://www.gsdgroupinc.com/web/image/product.template/487/image_1920?unique=1e20b94
  • Icon STARTUP IN LESS THAN 1S
  • Icon POWERED BY 12V CAMERA
  • Icon 108dB SOUND OUTPUT
  • Icon BUILT-IN CLASS-D AMPLIFIER
  • Icon TALK THROUGH MOBILE OR VMS
  • Icon WORKS WITH IP CAMS WITH RCA INPUT
(0 review )

HORN SPEAKER 30W | BUILT-IN CLASS D AMPLIFIER | 12 TO 24VDC POWER SUPPLY | RCA INPUT

PRODUCT SPECIFICATIONS

Rated Power 30W
Power Supply DC12V
SPL(1W/1M) 96dB
Max. SPL@1M 108dB
Freq. Response 400Hz-8KHz
Dispersion Angle 230 degree
Coverage Pattern Angle 60 degrees horizontal 90 degrees vertical at 2kHz
Network Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Audio Streaming Full echo cancellation
Audio Support OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Network Security Protocols HTTPS, TLS v1.2/v1.3, host-based firewall
Approvals CE, FCC, Rohs
Material & Finish ABS
Product Dimension 285 x 205x 290 mm
Installation Bracket Mount
Condition Temperatures -30 ° — +60 °, Storage

DOWNLOAD

DATA SHEET
EN_DATASHEET_SPK-30W-12V_2024-12-02.pdf Download
FR_DATASHEET_SPK-30W-12V_2024-12-02.pdf Download
