New

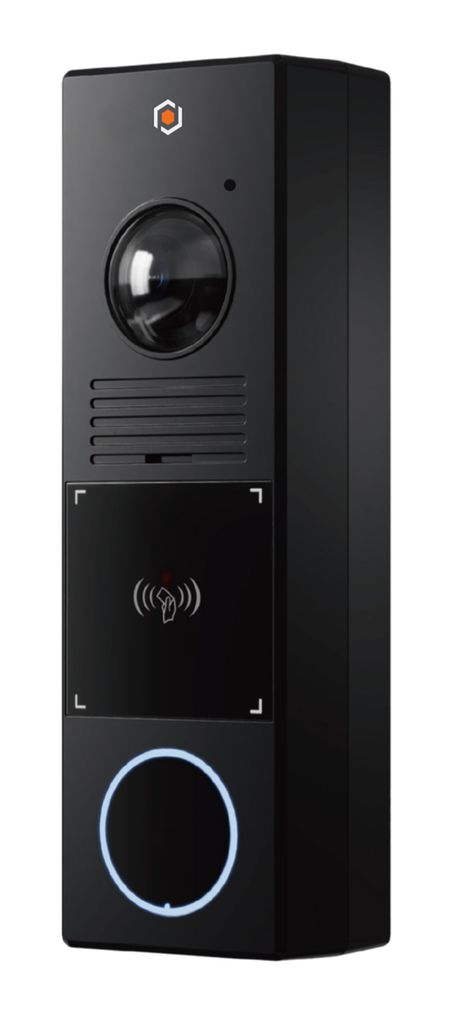

KVS-DBA20IP8MP-POE-R
-
8MP RESOLUTION
-
TWO-WAY COMMUNICATION
-
IR UP TO 10M
-
RELAY
-
FACE RECOGNITION
-
CARD/NFC/APP/QR
Download the
Smart Guardian App
ACCESS VIDEO | WIFI | 8MP | IR 30M | LENS 1.8MM | MIC&SPK | 180 DEGREES | METAL | SD CARD UP TO 1TB | AI | POE | DC12V, 1A | SIP PROTOCOL | IP65 | IK08 | NEMA 4X | CARD, NFC, BT, APP, FACE, QR CODE | NDAA
PRODUCT SPECIFICATIONS
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Signal System | PAL/NTSC |
| Focal Length | 1.8MM |
| Aperture | F2.0 |
| Angle Of View | 180° V |
| Min. Illumination | 0 LUX WITH IR ON |
| White Balance | Auto |
| DNR | SUPPORT |
| AGC | AUTO |
| BLC | Support |
| WDR | SUPPORT |
| Network Interface | IEEE802.3af, 100M PoE |
| TF Card Slot | SUPPORT TF CARD, UP TO 1 TO |
| RS485 | SUPPORT |
| Wiegand Port | INPUT SUPPORTS 26BITS & 34BITS |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Door contact input | 1 |
| Exit Button | 1 |
| Relay Out (Door Control) | 1 |
| Tamper Alarm | SUPPORT |
| Doorbell Button | Yes |
| Speaker | VOLUME MAX. 93± 3 dB |
| IR Light Distance | 5 METERS |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 8 kbps to 16 Mbps |
| Audio Compression | G711A/U |
| Power Input | PoE OR DC 12V, 1A |
| Power Consumption | 9.8W, 12VDC |
| Working Temperature | LESS THAN 95% (NON-CONDENSING) |
| Dimensions | 167mm X 52mm X 39mm |
| IP Rating | IP65, IK08, NEMA4X |
| Remote Monitoring | WEB / CMS / APP |
| Online Connection | Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission. |
| Network Protocol | UDP , IPv4, DHCP , NTP , RTSP , DDNS, SMTP , UPnP , HTTPS, HTTP |
| Interface Protocol | ONVIF, SIP |
| DTMF | SUPPORT |
| AI Features | Pedestrian / Face recognitaion |
| Net Weight | 316 g |
| Unlock Methods | CARD/NFC/APP/FACE RECOGNITATIO/ QR CODE |
| Card Type | Mifare Card / Desfire Card/ FM1208 Card |
| Built-In Microphone | 1 built-in microphone |
| Housing Material | Metal Case |
| Card Reading Frequency | 13.56MHz |
| Users | 3,000 |
| Card Capacity | 30,000 |
| Event Capacity | 150,000 |
