New

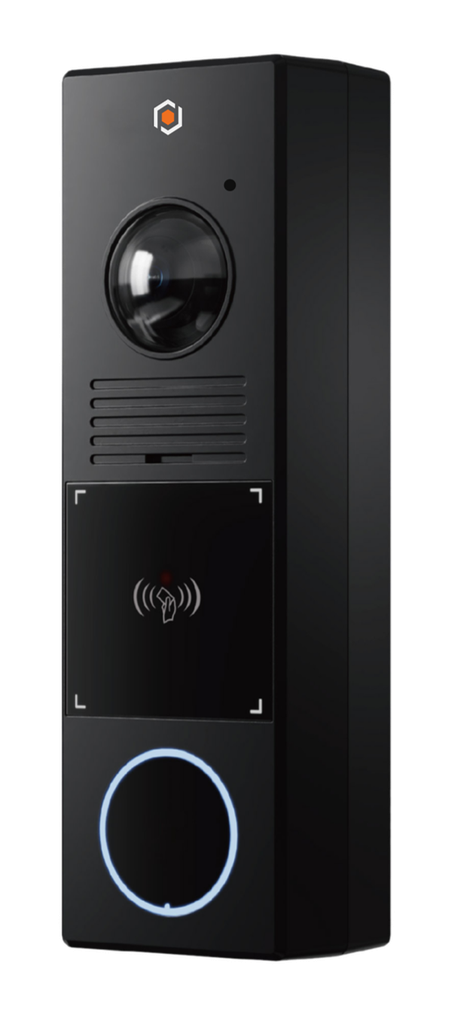

KVS-DBA20IP8MP-POE-R
ACCESS PRODUCTS
-
8MP Resolution
-
Two-Way Communication
-
IR up to 10M
-
Relay
-
Face Recognition
-
Card/NFC/App/QR
- Effective Pixels
- 8MP 3840(H)×2160(V)
- Signal System
- PAL/NTSC
- Focal Length
- 1.8MM
- Aperture
- F2.0
- Angle Of View
- 180° V
- Min. Illumination
- 0 LUX WITH IR ON
- White Balance
- Auto
- DNR
- SUPPORT
- AGC
- AUTO
- BLC
- Support
- WDR
- SUPPORT
- Network Interface
- IEEE802.3af, 100M PoE
- TF Card Slot
- SUPPORT TF CARD, UP TO 1 TO
- RS485
- SUPPORT
- Wiegand Port
- INPUT SUPPORTS 26BITS & 34BITS
- Alarm Input
- 1
- Alarm Output
- 1
- Door contact input
- 1
- Exit Button
- 1
- Relay Out (Door Control)
- 1
- Tamper Alarm
- SUPPORT
- Doorbell Button
- Yes
- Speaker
- VOLUME MAX. 93± 3 dB
- IR Light Distance
- 5 METERS
- Video Compression
- H.265+/H.265/H.264+/H.264/MJPEG
- Video Bit Rate
- 8 kbps to 16 Mbps
- Audio Compression
- G711A/U
- Power Input
- PoE OR DC 12V, 1A
- Power Consumption
- 9.8W, 12VDC
- Working Temperature
- LESS THAN 95% (NON-CONDENSING)
- Dimensions
- 167mm X 52mm X 39mm
- IP Rating
- IP65, IK08, NEMA4X
- Remote Monitoring
- WEB / CMS / APP
- Online Connection
- Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission.
- Network Protocol
- UDP , IPv4, DHCP , NTP , RTSP , DDNS, SMTP , UPnP , HTTPS, HTTP
- Interface Protocol
- ONVIF, SIP
- DTMF
- SUPPORT
- AI Features
- Pedestrian / Face recognitaion
- Net Weight
- 316 g
- Unlock Methods
- CARD/NFC/APP/FACE RECOGNITATIO/ QR CODE
- Card Type
- Mifare Card / Desfire Card/ FM1208 Card
- Built-In Microphone
- 1 built-in microphone
- Housing Material
- Metal Case
- Card Reading Frequency
- 13.56MHz
- Users
- 3,000
- Card Capacity
- 30,000
- Event Capacity
- 150,000
