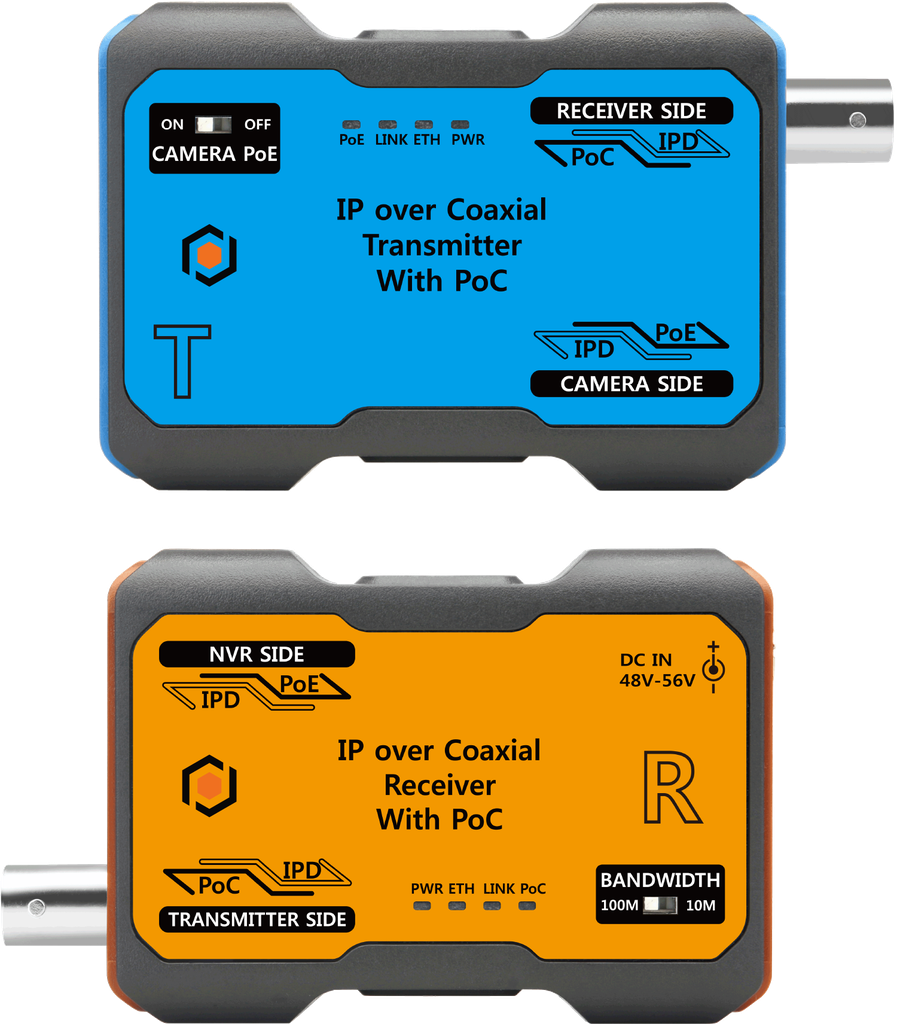

IPCOAX-300M
IP OVER COAX
-
Transmit up to 20 IP Cameras
-
Network Over Coax up to 800M
-
Bandwidth up to 100Mbps
-
Built-in Surge Protection
-
Power Over Coax 30W
-
Comes with 48V Power Supply
- Power Input
- DC 48V-56V/1A adapter or PoE Hub (IEEE 802.3at)
- Power Output
- PoC (DC 48V)
- Power Consumption
- DC 48V~56V/900mA (optional)
- Max. Transmission Distance
- 500m, 50Mbps
- Transmission Speed
- 100Mbps
- Connection Port
- TRANSMITTER SIDE - BNC-F, 75Ω NVR SIDE - RJ-45 (TIA/EIA568B Type) (DC 48V-56V IN - DC-JACK
- LED Indicator
- PWR - RED LED ETH - GREEN LED LINK - GREEN LED PoE - RED LED
- Bandwidth Select Switch
- 10Mbps, 100M
- Temperature/Humidity
- -10°C ~ 50°C / 0 ~ 80%
- Case Body/Weight
- ABS / 62g
- Dimensions
- 90(W) x 55(H) x 24(D)
- Power Input
- PoC
- Power Output
- Midspan PoE (Type B Only, PoE SW On/Off available)
- Transmission Speed
- 100Mbps
- Connection Port
- RECEIVER SIDE - BNC-F, 75Ω CAMERA SIDE - RJ-45 (TIA/EIA568B Type)
- LED Indicator
- PWR - RED LED ETH - GREEN LED LINK - GREEN LED PoE - RED LED
- Camera POE SW
- Slide Switch
- Temperature/Humidity
- -10°C ~ 50°C / 0 ~ 80%
- Case Body/Weight
- ABS / 60g
- Dimensions
- 90(W) x 55(H) x 24(D)
