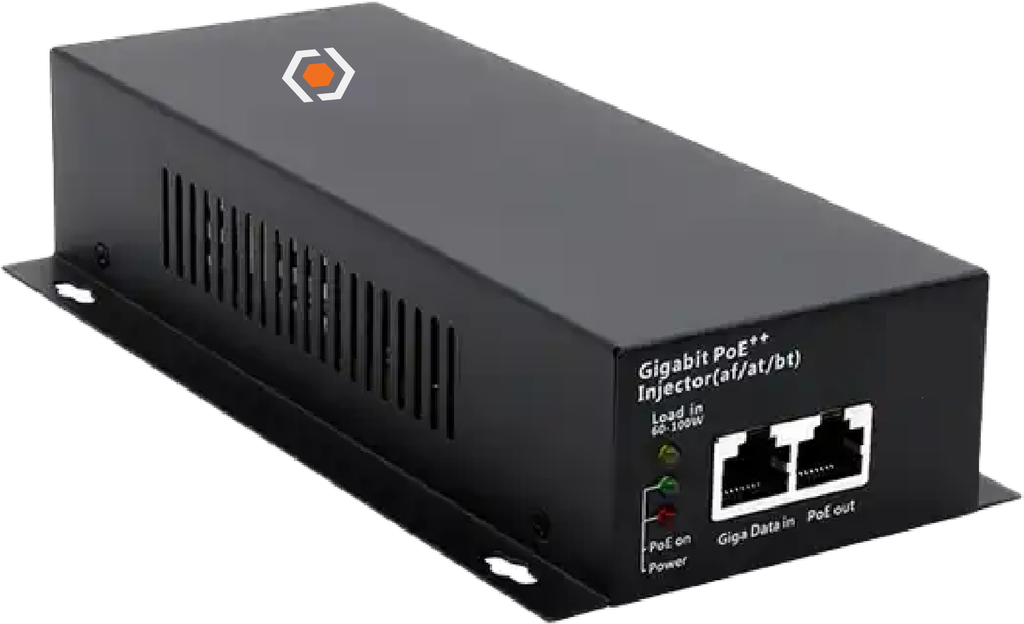

INJPOE90W
INJECTORS
- Voltage Type
- AC 100V~240V 50Hz/60Hz
- Standards/Protocols
- IEEE 802.3u, IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af/at
- Productiveness Type
- ≥85%
- Output Voltage
- 52V Fully loaded
- Output Current
- 2.88A
- Rating
- 150W
- POE Power
- 35W POE af/at, 90W POE bt
- Ripple Wave VPP
- ≤100mV
- Overcurrent Protection
- Yes
- Overvoltage Crowbar
- Yes
- Short-Circuit Protection
- Yes
- Wave Surge Protection
- Yes
- Pilot Lamp
- Power output indicator light, when the device normal output, red always bright. Green light
- Short-Circuit Protection
- When the output is short circuit to the ground, the built- in chip will close the output. When the short circuit is lifted, the device will automatically return to normal.
- Ageing Time
- All full load aging for 6~8 hours, and with load for surge voltage impact test for 100 times
- Work Temperature
- -40°C~+70°C 20~95%RH No condensation
- Lay In Temperature
- -40°C~+80°C 10~95%RH
- Temperature Coefficient
- ±0.03%°C
