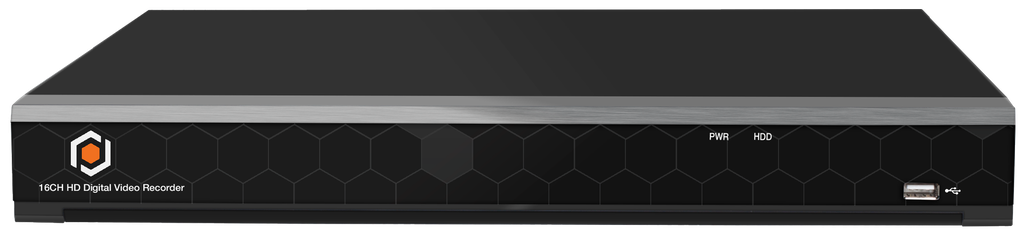

GSD-DVRFNC4K-16-N-AI

EMBEDDED DVRS

Book a Demo Find a Distributor Find an installer

Inputs: 64~192Mbps Decrease one Analog channel can increase 8Mbps Analog channel and digital channel can be converted
Out: 192Mbps
Analog-Video-Input: 16CH inputs
IP Video Input: 8ch (only IP up to 24ch)
Composite Video Input: up to 24ch (Analog video + IP video)
Installation Wizard: Yes
Compression: G.711a / Video
Display Resolution: 8MP (15fps) / 5MP (20fps) 4MP/3MP/1080P/720P/960H (30fps) IP
Speed: 8MP
Event: MD (Sensitivity Level 1~8) Videlo loss Beep, Email, Push notification to Mobile APP
Playback Function: Fast forward / backward (2x, 4x, 8x,16X) Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback: 160fps (Max 16CH playback) 5MP

AI Features: PERIMETER INTRUSION DETECTION FACE DETECTION LINE CROSSING DETECTION STATIONARY OBJECT DETECTION* HUMAN & VEHICLE DETECTION CROWD DENSITY DETECTION* LICENSE PLATE DETECTION* RARE SOUND DETECTION* NOISE DETECTION* QUEUE LENGTH DETECTION* VIDEO TAMPERING* AI MAX CAPTURED QUANTITY 200,000 AI REGISTERED QUANTITY 10,000 *THESE AI FEATURES ONLY WORK WITH IP CAMERAS, OR ANALOG CAMERAS WITH 2MP OR MORE
Local: UI5.0
Web: IE10/11 Safari V12.1 above / Firefox V.52 above Google chrome V.57 above / Edge V.79 above
Mobile Viewer: SMART GUARDIAN
Push Notifications: Yes
Channel: 16
P/W Reset: Press 10 seconds
BNC: 1 (704*576)
VGA: 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080)
HDMI: 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID)
Ethernet: 1 RJ45 100/1000 Base-T
USB: USB2.0*1(front) USB3.0*1(rear)
