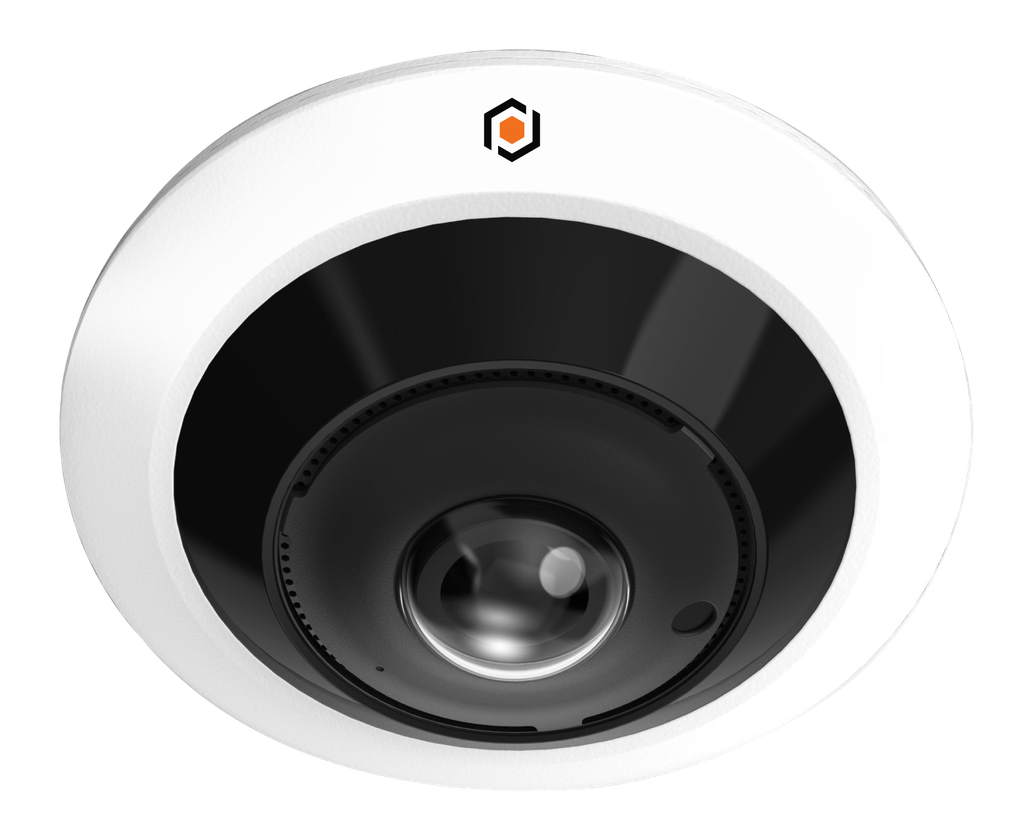

12MP Resolution
PRODUCT SPECIFICATIONS
| Imaging Device | 1/1.6” |
| Effective Pixels | 12MP 3536(H)×3536(V) |
| Min. Illumination | Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Scanning System | Progressive CMOS |
| Focal Length (Zoom Ratio) | 2.0mm |
| Max. Aperture Ratio | F No. 2.8 |
| Angular Field Of View | horizontal FOV 180° (wall mount), 360° (ceiling mount) |
| Lens Type | Fixed(M12) |
| IR LED | 3 |
| IR Viewable Length | Up to 10m |
| Motion Detection | Off/On (8 Levels) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Image/Schedule) |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 1TB |
| Alarm | 1 input, 1 output |
| Audio | Built-in microphone & speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| AI Features | Line Crossing, Crossing Counting, Heat Map, Rare Sound, Intrusion, Region Entrance, Region Exiting, Queue Length, Crowd Density |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression | H.265/H.265+/H.264/H.264+MJPEG |
| Resolution | Mainstream@30fps 12MP (3536x3536), 3000x3000, 2560x2560, 2160x2160, 1520x1520, 1080x1080, 720x720 Substeam@30fps 2MP (1080x1080), 720x720, 480x480, 240x240 |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate Control Method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF( Profile S/G/T/M) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above |
| Operating Conditions | -35°+60°C/ Less than ≤ 95% RH |
| Ingress Protection | IP66 |
| Input Voltage / Current | D12V/POE (IEEE802.3af) |
| Material | Metal |
