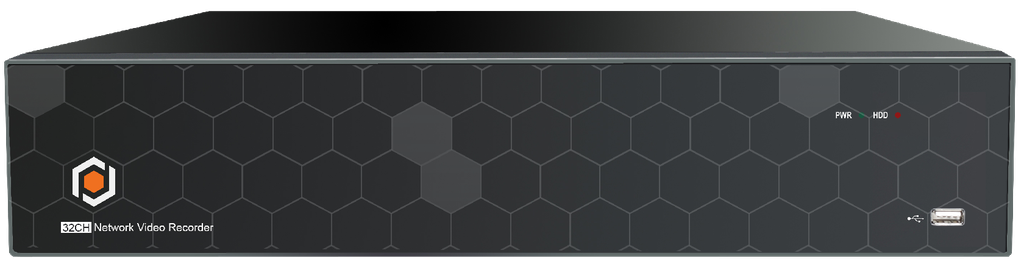

GSD-NVRFNC4K-32NP-N

https://www.gsdgroupinc.com/web/image/product.template/124/image_1920?unique=fa68b1a
  • Icon ONVIF COMPLIANT (G/M/S/T)
  • Icon UP TO 12MP
  • Icon ALARM 16 IN/4 OUT
  • Icon 2X 4K HDMI OUTPUT
  • Icon HDMI SPOT MONITOR
  • Icon UP TO 32 IP CAMS
  • Icon RACKMOUNT COMPATIBLE
  • Icon 8HDD SLOTS UP TO 16TB
FIND A DISTRIBUTOR FIND AN INSTALLER
NDAA Onvif GST CE FCC
Download the Smart Guardian App
APP STORE GOOGLE PLAY
(0 review )

UP TO 8MP | 32 PORTS | 128 BANDWIDTH | 16 ALARMS | A.I | 0 POE | SMARTGUARDIAN | RACKMOUNT | NDAA

PRODUCT SPECIFICATIONS

Resolution 12MP, 8MP, 5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)
Input 256M
Out 128M
SOC NDAA
Installation Wizard Yes
Compression G.711A;G.711U Video
AI Features Yes
Frame Rate 60fps 4MP
Event MD (Sensitivity Level 1~8) Videlo loss Beep, Email, Push notification to Mobile APP
Playback Function Fast forward / backward (2x, 4x, 8x,16X) Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback Max 16CH playback
AI Features HUMAN & VEHICLE DETECTION STATIONARY OBJECT DETECTION LICENSE PLATE DETECTION HEAT MAP CROWD DENSITY DETECTION NOISE DETECTION VIDEO TAMPERING CROSS COUNTING INTRUSION DETECTION REGION ENTRANCE & EXITING QUEUE LENGTH DETECTION AI REGISTERED QUANTITY 10,000 INSTANT NOTIFICATIONS AI MAX CAPTURED QUANTITY 200,000 PERIMETER INTRUSION DETECTION LINE CROSSING DETECTION FACE DETECTION RARE SOUND DETECTION
Local UI5.0
Web IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
Mobile Viewer SMART GUARDIAN
Push Notifications Yes
P/W Reset Press 10 seconds
VGA 1 ( 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 )
HDMI 1 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*1440, 3840*2160/EDID) Sync output with VGA
HDMI 2 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080) Async ouptut with HDMI 1
Ethernet 2 RJ45 100/1000 Base-T
USB USB2.0*1 (front) USB3.0*1+USB2.0*1 (rear)
Audio Out 1
E-SATA 1
HDD 8 SATA , each HDD up to 16TB
Line-In 1
RS485 1
Alarm Input/Out 16 in /4 out
OSD Language EN/FR/ES/DN/TC/IN/JP/KR
Dimension (WXHXD) 440*460*89mm
Input Voltage / Current ATX 250W
Power Consumption 12W
Operating Temperature/Humidity -10°C~+50°C (14°F ~ 122°F) Humidity
Hard Drive PURPLE NO PURPLE HDD , 8TB , 16TB , 24TB , 32TB

DOWNLOAD

FIRMWARE
GSD-NVRFNC4K-32-NP-N_Firmware_2024-06-27 Download
DATA SHEET
EN_DATASHEET_GSD-NVRFNC4K-32NP-N_2025-11-27.pdf Download
FR_DATASHEET_GSD-NVRFNC4K-32NP-N_2025-11-27.pdf Download
FCC CERTIFICATES
FCC_CERTIFICATION_GSD-NVRFNC4K-32NP-N.pdf Download
CE CERTIFICATES
CE_EMC CERTIFICATION_GSD-NVRFNC4K-32NP-N.pdf Download
CE_SECURITY CERTIFICATION_GSD-NVRFNC4K-32NP-N.pdf Download
