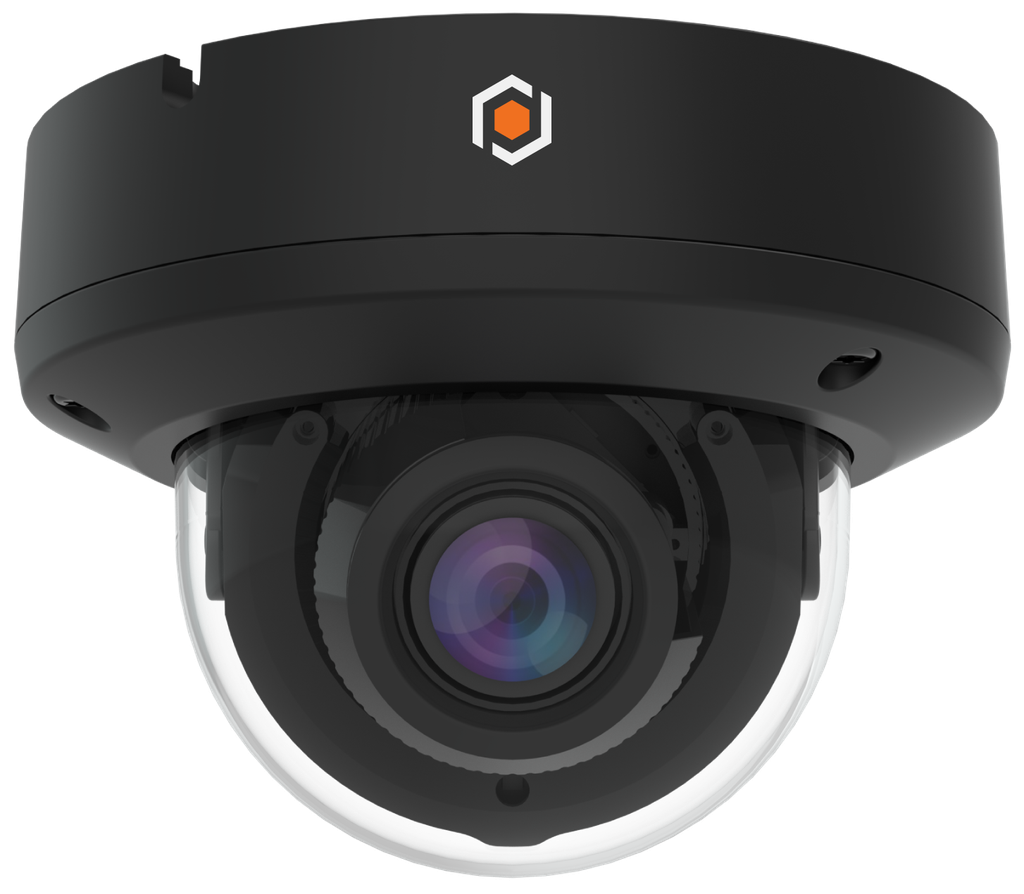

D6Z2812IP5MP-AI-B

https://www.gsdgroupinc.com/web/image/product.template/260/image_1920?unique=923ba1d
DOME
  • 5MP Resolution
  • Alarm/Audio In/Out
  • IR up to 30M
  • 2.7-13.5mm Motorized Lens
  • Impact Resistant
  • Waterproof & Dust-Tight
  • Micro SD Card Slot up to 256GB
CE FCC RoHS NDAA Onvif GMST
Book a Demo Find a Distributor Find an installer
Imaging Device
1/2.7”
Effective Pixels
5MP 2592(H) × 1944(V)
Scanning System
Progressive CMOS
Min. Illumination
Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)
2.7 ~ 13.5mm
Max. Aperture Ratio
F No. 1.83 (W) ~ 3.32(T)
Angular Field Of View
31 ~102°, Vertical
Min. Object Distance
0.3m~INF
Lens Type
Motorized(Ø14)
IR Viewable Length
Up to 30m
Camera Title
Show/Hide
Day & Night
IR cut filter with auto switch (Day/Night/Auto/Image/Schedule)
Backlight Compensation
Off/On (5 Zones)
Wide Dynamic Range
WDR
Digital Noise Reduction
3D DNR
Motion Detection
Off/On (8 Levels)
Privacy Masking
Off/On (4 Zones, Rectangle)
Gain Control
Auto
White Balance
Auto/Manual
Electronic Shutter Speed
1/5 ~ 1/20000s
Image Setting
Flip/Rotation
On-Board Storage
Micro SD slot, up to 1TB
Alarm
1 input, 1 output
Audio
1 input (RCA), 1 output (RCA)
Hardware Reset
Yes
Smart Features
Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Stationary Object Detection (SOD), Human&Vehicle Detection (PD&VD), Face Detection (FD), Cross Counting (CC), Crowd Density Detection (CD), Queue Lenght Detection (QD), Heat Map (HM)
Ethernet
RJ45(10/100BASE-T)
Video Compression Format
H.265/H.264
Resolution
Mainstream@30fps 5MP(2592×1944),4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080) 960P(1280x960),720P(1280x720) Substeam@30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobilestream@30fps VGA(640x480), QVGA(320x240)
Video Quality Adjustment
8Kbps ~ 8Mbps
Bitrate Control Method
CBR/VBR
Streaming Capability
Triple-Stream(Main/Sub/Mobile)
IP
IPv4
Protocol
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security
IP address filter; complicated password; Authenticated username and password
Streaming Method
Unicast/Multicast
Max. User Access
Max 7 (admin+user)
Application Programming Interface
ONVIF( Profile S/G/T)
Compatible Web Browsers
IE8,9,10,11, Chrome 44/lower, Firefox 51/lower, Safari 11/lower
Operating Conditions
-30~+55°C/less than ≤ 95% RH
Storage Conditions
-30~+60°C/less than ≤ 95% RH
Ingress Protection
IP67
Protection Rating
IK10
Input Voltage / Current
D12V/POE(IEEE802.3af)
Power Consumption (IR OFF)
3.5W/4.5W
Power consumption (IR ON)
5.5W/7.5W
Color/material
Black/Metal
Dimensions (HXWXD)
Ø148.7x109mm
Weight
appr 960g
