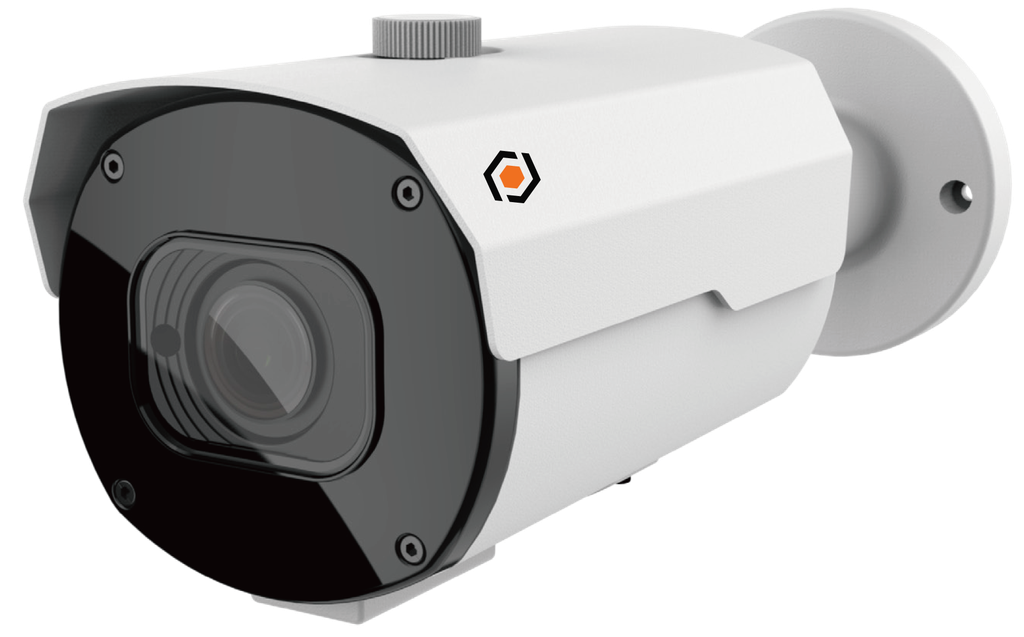

B7Z2812IP8MP-AI

BULLET

Book a Demo Find a Distributor Find an installer

Gain Control: Auto
White Balance: Auto/Manual
Electronic Shutter Speed: 1/5 ~ 1/20000s
Image Setting: Flip/Corridor/Rotation
On-Board Storage: Micro SD slot, up to 1TB
Alarm: 1 input, 1 output
Audio: 1 input (RCA), 1 output (RCA)
Hardware Reset: Yes
Smart Features: Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC)
Ethernet: RJ45(10/100BASE-T)
Video Compression Format: H.265/H.264
Resolution: Mainstream 8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960),720P(1280x720) Substeam 720P(1280x720),VGA(640x480),QVGA(320x240) Mobilestream VGA(640x480), QVGA(320x240)
Max. Framerate: 25fps@8MP,5MP,4MP,3MP,2MP,960P,720P,VGA,QVGA 60Hz
Video Quality Adjustment: 8Kbps ~ 16Mbps
Bitrate Control Method: CBR/VBR
Streaming Capability: Triple-Stream(Main/Sub/Mobile)
IP: IPv4

Protocol: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
Security: IP address filter;complicated password; Authenticated username and password
Streaming Method: Unicast/Multicast
Max. User Access: Max 7 (admin+user)
Application Programming Interface: ONVIF( Profile S/G/T, 18.12)
Compatible Web Browsers: IE8,9,10,11, Chrome 44/lower, Firefox 51/lower, Safari 11/ lower
Operating Conditions: -35°+60°C/ Less than ≤ 95% RH
Storage Conditions: -30~+60°C/less than ≤ 95% RH
Ingress Protection: IP66
Input Voltage / Current: D12V/POE(IEEE802.3af)
Power Consumption (IR OFF): 4W/5W
Power consumption (IR ON): 8W/10W
Color/material: White/Metal
Dimension (WXHXD): Ø87.4x242.12mm
Weight: appr 830g
