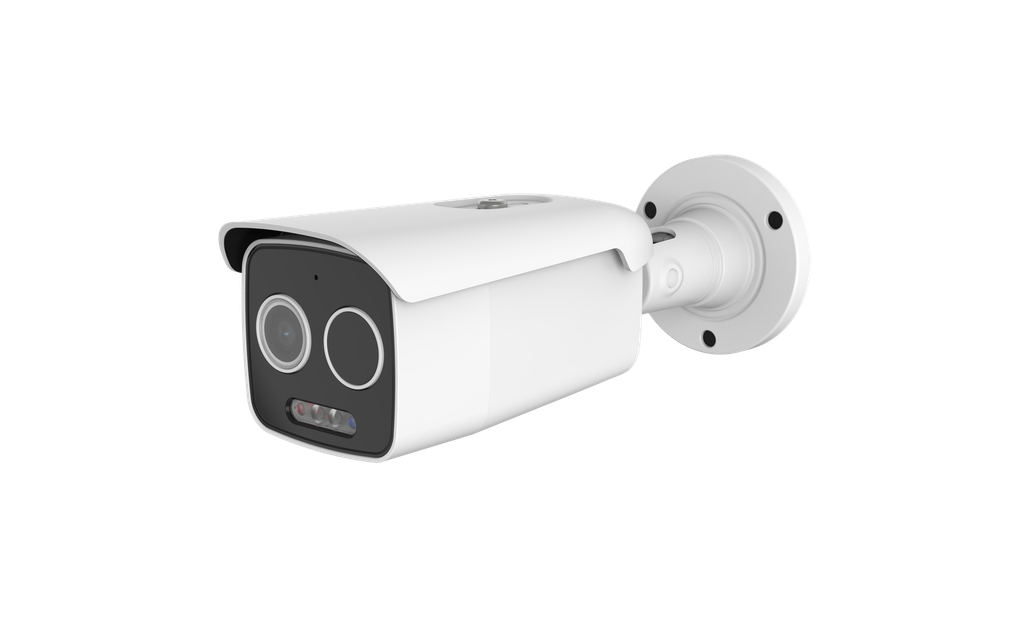

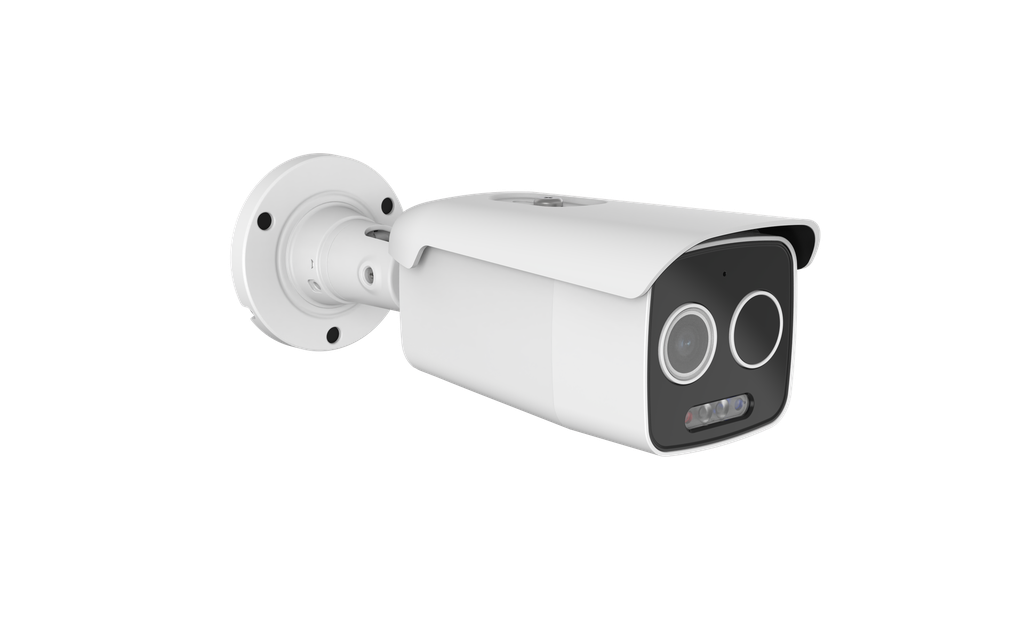

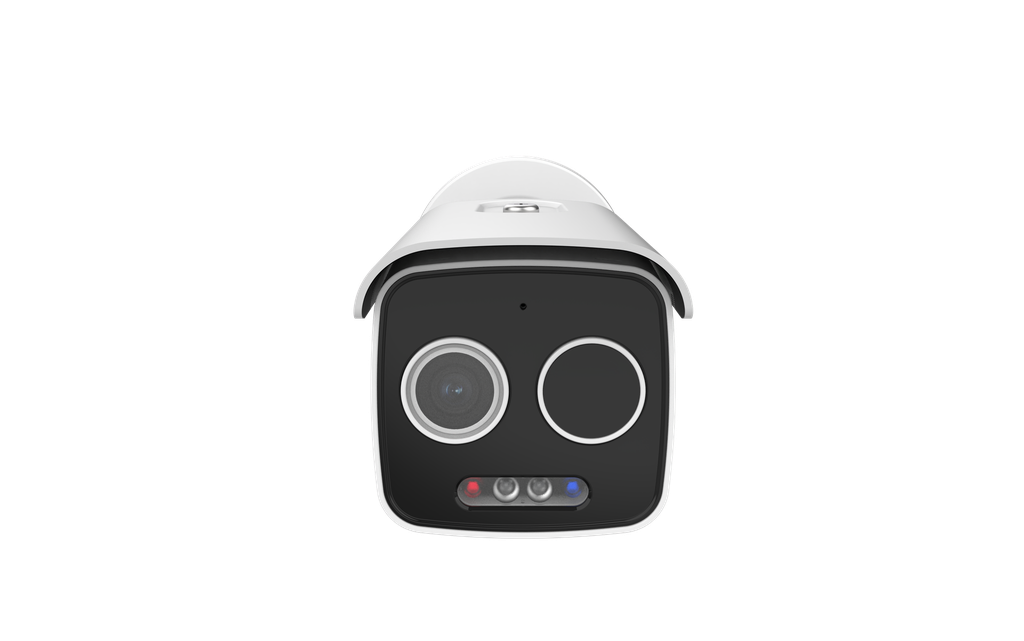

B7T4IP5MP-AI-V2
-
TotalView - See in colour at night
-
3.6MM Lens
-
MEASURES THE TEMPERATURE
-
IR UP TO 45M
-
AUDIO IN/OUT
-
ALARM/AUDIO IN/OUT
-
5MP RESOLUTION
Download the
Smart Guardian App
5MP | IR UP TO 30M | LENS 3,2MM | BUILT-IN MIC. | THERMAL CAMERA | 12 μm | -20-500 °C | VISIBLE LIGHT | ALARM AUDIO IN/OUT | A.I | SD CARD UP TO 1TB | WDR 120dB| DC12V / POE 10.4W | IP67 | NDAA
PRODUCT SPECIFICATIONS
| Resolution | 5MP |
| THERMAL | Yes |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤40mk@25°C F#1.0, 25Hz |
| Lens (Focal Length) | 3.2mm |
| IFOV | 3.75 mrad |
| Field Of View | 56°x42° |
| Min. Focusing Distance | 0.3m |
| DRI Distance Hum | 148m (486ft), Recogntion |
| DRI Distance Vehicle | 24m(79ft) |
| Heat Detection Distance | 25m(82t) |
| Aperture | F1.1 |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Min. Illumination | 0.003 Lux @(F1.6,AGC ON), B/W |
| Shutter Speed | 1/5 s to 1/20000 s |
| Field Of View | 81°, Vertical |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| Bi-Spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 30 m (IR) / 15m (Warm light) |
| IR Wavelength | 850mm |
| Smart Supplement Light | Yes |
| Warning Light | 1 Red & 1Blue flashing light |
| Alarm Input | 1-ch inputs |
| Alarm Output | 1-ch outputs |
| Alarm Action | SD recording/Alarm output/smart capture/FTP upload/ email linkage/ audio alarm/Red & Blue flashing light |
| Audio Input | 1-ch inputs / 1 Built-in MIC |
| Audio Output | 1-ch outputs/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. |
| SD Memory Card | Built-on micro SD card slot (up to 1TB) |
| Web Browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
