On Demand

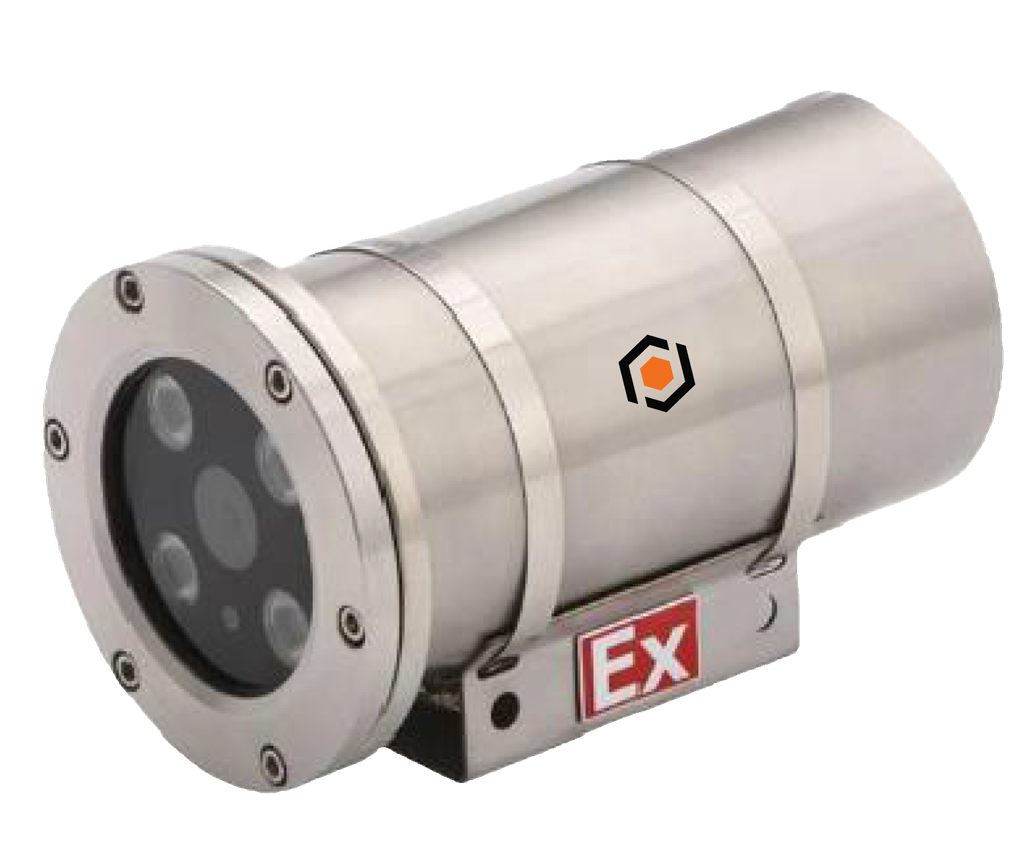

B1F28IP5MP-EX
BULLET
-
5MP Resolution
-
2.8mm Lens
-
IR up to 30M
-
IP68
-
Explosion Proof
- Effective Pixels
- 5MP 2592(H)×1944(V)
- Main Stream
- 5MP (2592*1944)
- Sub-Stream
- 704*576
- Frame Rate
- 30fps(2560*1440)
- Image Sensor
- 1/2.8” Sony 335 CMOS Sensor
- DSP
- Dual core 32-bit DSP
- Min. Illumination
- Color 0.001Lux@F1.2, B/W 0.0001 Lux@F1.2
- Adjust Parameters
- WDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
- Underwater Protection
- Anti-salt spray, Up to 20m underwater
- Video Compression
- H.264 / H.265
- Streaming Capability
- Supports dual stream, AVI format
- Video Bit Rate
- Supports 0.1M ~4Mbps bit rate adjustable
- Frame Rate
- Support 1~30fps adjust
- Alarm Triggers
- Motion Detection, Video Blind, Video Loss, Masking
- Compatible Web Browsers
- IE8,9,10,11, Chrome 44/lower, Firefox 51/lower, Safari 11/lower
- Smart Phone
- NA
- CMS Software
- Uniform CMS Software (multiple devices management system)
- Network Interface
- RJ45*1 10M/100M
- ONVIF
- YES
- POE
- Yes
- Languages
- English
- IR Cut Filter
- Set of double light switch IR-CUT filter
- Lens
- 2.8mm Fixed
- Infrared LED
- 4pcs IR Leds
- IR Distance
- 30M
- Housing Material
- 304 stainless steel
- Connection Port
- 1*DC Connector ,1* RJ45(10/100Mpps T)
- Input Voltage / Current
- DC12V/PoE(802.3af/820.3at)
- Power Consumption
- 600mA max., IR Off
- Working Temperature
- -40°C~+60°C, 10%~90%
- Dimensions (L*W*H)
- 255mm*140mm*110mm
- Weight
- 3.3Kg
- IP Rating
- IP68
- Protection Rating
- IK10
