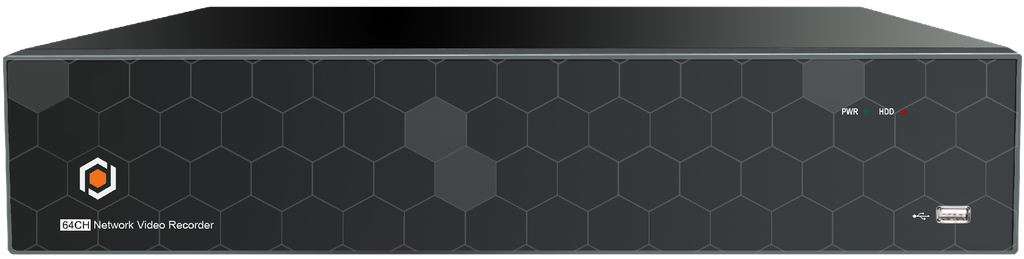

GSD-NVRFNC4K-64NP-N
-
ONVIF COMPLIANT (G/M/S/T)
-
UP TO 12MP
-
RACKMOUNT COMPATIBLE
-
8HDD SLOTS UP TO 16TB
-
UP TO 64 IP CAMERAS
-
4X 4K HDMI OUTPUT
-
ALARM 16 IN/ 4 OUT
-
3 HDMI SPOT MONITORS
Download the
Smart Guardian App
UP TO 12MP | 64 PORTS | 640 BANDWIDTH | 16 ALARMS | A.I | 0 POE | SMARTGUARDIAN | RACKMOUNT | NDAA
PRODUCT SPECIFICATIONS
| Resolution | 12MP, 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Input | 640M |
| Out | 640M |
| Compression | G.711A/G.711U Video |
| AI Features | Yes |
| Frame Rate | 240fps | 4MP |
| Event | MD (Sensitivity Level 1~8) Videlo loss | Beep, Email, Push notification to Mobile APP |
| Playback Function | Fast forward / backward (2x, 4x, 8x,16X) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | Max 16CH playback |
| Raid Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Fisheye | Support Dewarping |
| Local | UI5.0 |
| Web | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Mobile Viewer | SMART GUARDIAN |
| Push Notifications | Yes |
| P/W Reset | Yes |
| HDMI 1 | 3 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 1920*1080 , 1600*1200, 1920*1200, 3840*2160/7680*4320/EDID) Async out |
| HDMI 2 | 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID) Async out |
| Ethernet | 2 RJ45 1000 Base-T |
| USB | USB2.0*1(front) USB3.0*2(rear) |
| Audio Out | 1 |
| E-SATA | 1 |
| HDD | 8 SATA HDD, up to 16TB (WD Purple) |
| Line-In | 1 |
| RS232 | 1*RJ45 |
| RS485 | 1 |
| Alarm Input/Out | 16in /4out |
| OSD Language | ENG/FR/SPA/PT/GER/IT/GR/DAN/FIN/RUS/HEB/ TUR/BUL/ARA/KOR/JPN/TH/HIN/ROM/DUT/POL |
| Dimension (WXHXD) | 440*460*89mm |
| Input Voltage / Current | ATX 250W |
| Power Consumption | 8W (Excluding hard disk) |
| Operating Temperature/Humidity | -10°C~+50°C (14°F ~ 122°F) Humidity |
| AI Features | HUMAN & VEHICLE DETECTION STATIONARY OBJECT DETECTION LICENSE PLATE DETECTION HEAT MAP CROWD DENSITY DETECTION NOISE DETECTION VIDEO TAMPERING CROSS COUNTING INTRUSION DETECTION REGION ENTRANCE & EXITING QUEUE LENGTH DETECTION AI REGISTERED QUANTITY 10,000 INSTANT NOTIFICATIONS AI MAX CAPTURED QUANTITY 200,000 PERIMETER INTRUSION DETECTION LINE CROSSING DETECTION FACE DETECTION RARE SOUND DETECTION |
| Hard Drive PURPLE | NO PURPLE HDD , 16TB , 24TB , 32TB , 64TB , 96TB |
| Hard Drive GOLD | NO GOLD HDD , 16TB-R , 24TB-R , 32TB-R , 64TB-R , 96TB-R |
