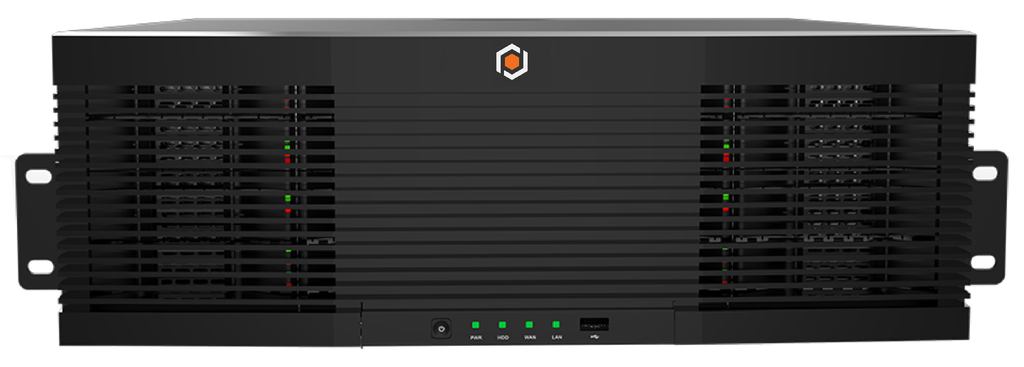

GSD-NVRFNC4K-256NP
-
RACKMOUNT COMPATIBLE
-
UP TO 12 MP
-
16HDD SLOTS UP TO 16TB
-
4X 4K HDMI OUTPUT
-
ALARM 16 IN/ 4 OUT
-
AUDIO OUTPUT
-
3 HDMI SPOT MONITORS
-
UP TO 256 IP CAMERAS
Download the
Smart Guardian App
UP TO 12MP | 256 PORTS | 1024 BANDWIDTH | 16 ALARMS | A.I | 0 POE | SMARTGUARDIAN | RACKMOUNT | NDAA
PRODUCT SPECIFICATIONS
| Inputs | 8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Input | 1024M |
| Out | 1024M |
| Compression | G.711a Video |
| Frame Rate | 240fps 4MP |
| Event | MD (Sensitivity Level 1~8) Videlo loss Beep, Email, Push notification to Mobile APP |
| Playback | Fast forward / backward (2x, 4x, 8x,16X) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Live/Playback Performance | Max 16CH playback |
| AI Features | HUMAN & VEHICLE DETECTION STATIONARY OBJECT DETECTION LICENSE PLATE DETECTION HEAT MAP CROWD DENSITY DETECTION NOISE DETECTION VIDEO TAMPERING CROSS COUNTING INTRUSION DETECTION REGION ENTRANCE & EXITING QUEUE LENGTH DETECTION AI REGISTERED QUANTITY 10,000 INSTANT NOTIFICATIONS AI MAX CAPTURED QUANTITY 200,000 PERIMETER INTRUSION DETECTION LINE CROSSING DETECTION FACE DETECTION RARE SOUND DETECTION |
| Local | UI5.0 |
| Web | IE10/11. Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above |
| Mobile Viewer | SMART GUARDIAN |
| Push Notifications | Yes |
| P/W Reset | Press 3 seconds |
| HDMI | 3 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID) 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID) Async out |
| Ethernet | 2 RJ45 1000 Base-T |
| USB | USB2.0*1(front) USB3.0*2(rear) |
| Audio Out | 1 |
| E-SATA | 1 |
| HDD | 16 SATA HDD, up to 16TB each HDD |
| Hot Swappable HDD | Yes |
| Raid Type | RAID0, RAID1, RAID4, RAID5, RAID6 and RAID10 |
| Line-In | 1 |
| RS232 | 1*RJ45 |
| RS485 | 1 |
| Alarm Input/Out | 16in /4out |
| OSD Language | EN/FR/ES/DN/TC/IN/JP/KR |
| Dimension (WXHXD) | 440*460*189mm |
| Input Voltage / Current | AC 110~240V ATX 250W |
| Power Consumption (Excluding Hard Disk) | 30-44WATT |
| Operating Temperature/Humidity | 0°C~+40°C (32°F ~ 104°F) Humidity |
| Hard Drive PURPLE | NO PURPLE HDD , 32TB , 64TB , 96TB , 128TB , 192TB |
| Hard Drive GOLD | NO GOLD HDD , 64TB-R , 128TB-R , 192TB-R |
DOWNLOAD
| FIRMWARE | |
| GSD-NVRFNC4K-256NP_Firmware_2024-08-07 | Download |
| DATA SHEET | |
| EN_DATASHEET_GSD-NVRFNC4K-256-NP_2025-11-27.pdf | Download |
| FR_DATASHEET_GSD-NVRFNC4K-256-NP_2025-11-27.pdf | Download |
| FCC CERTIFICATES | |
| FCC_CERTIFICATION_GSD-NVRFNC4K-256-NP.pdf | Download |
| CE CERTIFICATES | |
| CE_EMC CERTIFICATION_GSD-NVRFNC4K-256-NP.pdf | Download |
| CE_SECURITY CERTIFICATION_GSD-NVRFNC4K-256-NP.pdf | Download |
